Remove/install tilting/sliding roof cover - AR77.20-P-1000P

MODEL 203.0 /2 with CODE (414a) Glass electric tilting/sliding roof

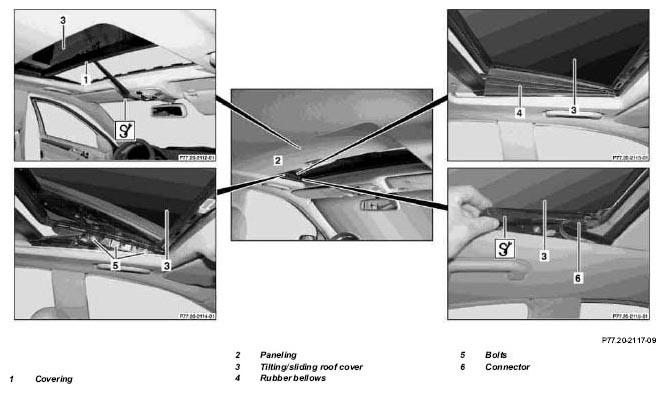

Fig 1: Identifying Tilting/Sliding Roof Cover Remove/Install Components

Shown on model 203.0

	Remove/Install
	Risk of injury  to fingers being jammed or pinched  when Remove/install or aligning hoods, doors, trunk lid/tailgate or sliding roof.	When moving components, ensure that no body parts or limbs are within the operating range of moving parts.	AS00.00-Z-0011-01A
1	Slide paneling (2) on sliding roof to rear
2	Move tilting/sliding roof approx. 20 cm toward rear
3	Remove covering (1)	Model 203.0: Press covering (1) away at center with plastic wedge before removal Model 203.2: Press covering (1) away at center and side with plastic wedge before removal. Installation:  Position covering from inside toward outside
		Mounting wedge	Figure
4	Move tilting/sliding roof to tilt position
5	Remove rubber bellows (4) on both sides	Do not damage rubber bellows (4).
6	Unscrew bolts (5) on both sides	Installation:  Screw in bolts (5) and when tightening: ↓
		adjust tilting/sliding roof panel	AR77.20-P-1100P
		Bolt, tilting/sliding roof cover to tilting bracket mount	*BA77.20-P-1004-01A
7	Unclip connector (6)	Unclip from frame of tilting/sliding roof cover with mounting wedge, do not damage frame
		Mounting wedge	Figure
8	Disconnect connector (6)
9	Remove tilting/sliding roof cover (3)
10	Install in the reverse order
11	Perform teach-in procedure for sliding roof obstruction sensor		AD00.00-P-2000-04A
		Diagnosis system STAR DIAGNOSIS	*WH58.30-Z-1048-13A

SLIDING ROOF-ELECTRICS

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)
