Adjust tilting/sliding roof cover - AR77.20-P-1100P

MODEL 203.0 /2 with CODE (414a) Glass electric tilting/sliding roof

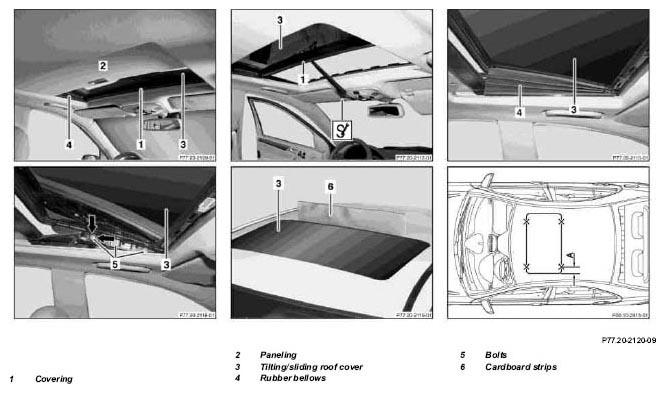

Fig 1: Identifying Tilting/Sliding Roof Cover Adjustment

Shown on model 203.0

	Remove/Install
1	Slide cover (2) to rear
2	Move tilting/sliding roof approx. 20 cm toward rear
3	Remove covering (1)	Model 203.0: Press covering (1) away at center with plastic wedge before removal Model 203.2: Press covering (1) away at center and side with plastic wedge before removal. Installation: Position covering from inside toward outside
		Mounting wedge	Figure
4	Move tilting/sliding roof to tilt position
5	Remove rubber bellows (4) on both sides	Do not damage rubber bellows (4).
6	Close tilting/sliding roof
	Adjust
7	Loose bolts (5)
8	Insert cardboard strip (6) into sealing joint at rear	Cardboard strip (6) must be 500 mm long and approx. 2 mm thick
9	Adjust tilting/sliding roof panel (3) in relation to exterior roof surface	Gap dimensions	*BE77.20-P-1001-01A
		Height setting	*BE77.20-P-1002-01A
10	Fully tighten bolts (5)	First tighten the rear bolt (5) on one side and then tighten the front bolt. When tightening rear bolts (5) with screwdriver press lightly toward rear and downward (arrows).
		Bolt, tilting/sliding roof panel to tilting bracket mount	*BA77.20-P-1004-01A
11	Perform teach-in procedure for sliding roof obstruction sensor		AD00.00-P-2000-04A
		Diagnosis system STAR DIAGNOSIS	*WH58.30-Z-1048-13A
	Check
12	Check tilting/sliding roof for proper function and fit
13	Install in the reverse order

TEST AND ADJUSTMENT VALUES FOR TILTING/SLIDING ROOF

Number	Designation			Model 203.0	Model 203.2
BE77.20-P-1001-01A	Gap dimensions	Tilting/sliding roof cover, front	mm	0.15	0.15
BE77.20-P-1001-01A	Gap dimensions	Tilting/sliding roof cover, on side and rear	mm	0.30	0.30
BE77.20-P-1002-01A	Height setting	Measuring position "A" (x)	mm	140	140
		front: lower than outer roof surface	mm	0...1	0...1
		rear: higher than outer roof surface	mm	0...1	0...1

SLIDING ROOF-ELECTRICS

Number	Designation		Model 203.0/2
BA77.20-P-1004-01A	Bolt, tilting/sliding roof panel on tilting bracket mount	Nm	4

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
