Turbocharging function - GF09.00-P-2000GS
ENGINE 111.955 /956 /957 /958 /981 /982 /983

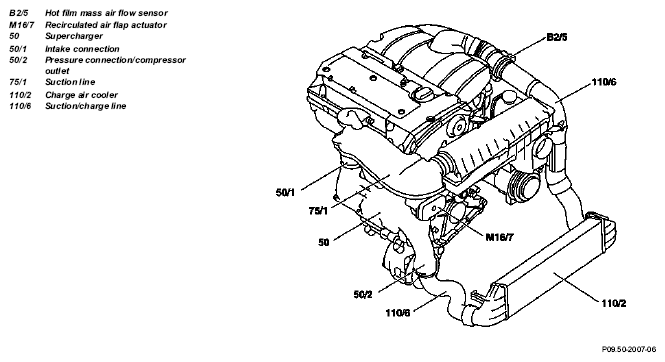

The supercharger compresses the inducted air. The air mass is determined downstream of the charge air cooler and the appropriate quantity of fuel is metered to the increased air mass.
Engine power output is boosted by the supercharger, particularly in the lower rpm range.
| ME-SFI control module position/task/design/function | GF07.61-P-5000GS | ||
| Crankshaft position sensor position/task/design/function | GF07.04-P-4116F | ||
| Throttle valve actuator position/task/design/function | GF30.22-P-4101GS | ||
| Recirculated air flap actuator position/task/design/function | GF09.50-P-3101GS | ||
| Supercharger position/task/design/function | GF09.50-P-3102G | ||
| Charge air cooler position/task/design/function | GF09.41-P-3100C | ||
| Hot film mass air flow sensor position/task/design/function | GF07.07-P-4118GS | ||
| Supercharger charge pressure control function | GF09.50-P-3002GS |
