Supercharger charge pressure control function - GF09.50-P-3002GS
ENGINE 111.955 /956 /957 /958 /981 /982 /983

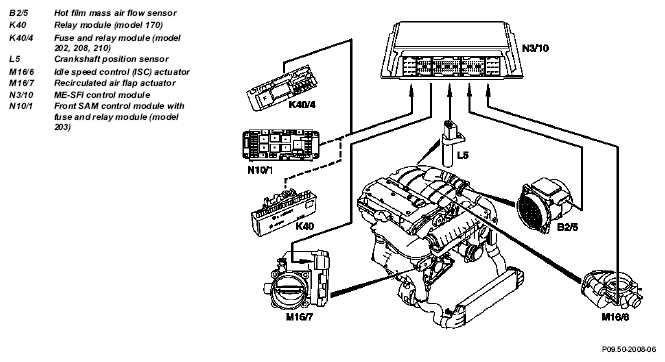

Fig 1: Identifying Supercharger Charge Pressure Control Connection Diagram - Engine 111.955 /956 /957 /958 /981 /982 /983
Fig 2: Identifying Supercharger Charge Pressure Control Function - Engine 111.955 /956 /957 /958 /981 /982 /983
The recirculated air flap actuator is positioned at the top part of the air cleaner to control the charge pressure. The recirculated air flap can be operated steplessly between 0 - 90°. This makes it possible to control the charge pressure downstream of the supercharger by means of the recirculated air line. At full throttle, the flap is always closed (maximum charge pressure).
The charge pressure is determined indirectly from the following variables:
- Engine speed
- Air mass
- Accelerator pedal position
| ME-SFI control module position / task / design / function | GF07.61-P-5000GS | ||
| Recirculated air flap actuator position/task/design/function | GF09.50-P-3101GS | ||
| Supercharger position/task/design/function | GF09.50-P-3102G | ||
| Hot film mass air flow sensor position/task/design/function | GF07.07-P-4118GS | ||
| Barometric pressure sensor position/task/design/function | GF07.04-P-5040GS | ||
| Crankshaft position sensor position/task/design/function | GF07.04-P-4116F |
