Charge pressure cooler location/task/design/function - GF09.41-P-3100IB: Notes
ENGINE 112.960 in MODEL 170.466
ENGINE 112.961 in MODEL 203.065 /265

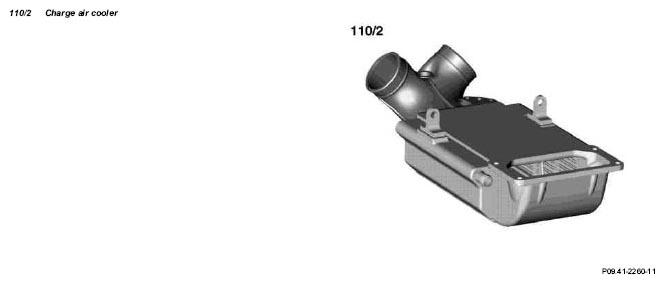

| Charge air cooler position | GF09.41-P-3100-02H | ||
| Charge air cooler task | The warmed up charge air cools off by means of compression. | ||
| Charge air cooler design | The charge air cooler is an air/liquid heat exchanger. The water cooling makes it possible to achieve a higher efficiency compared to air-cooled charge air coolers. |
||
| Charge air cooler function | GF09.41-P-3100-01H |
