Charge air cooler position - GF09.41-P-3100-02H

Low temperature circuit

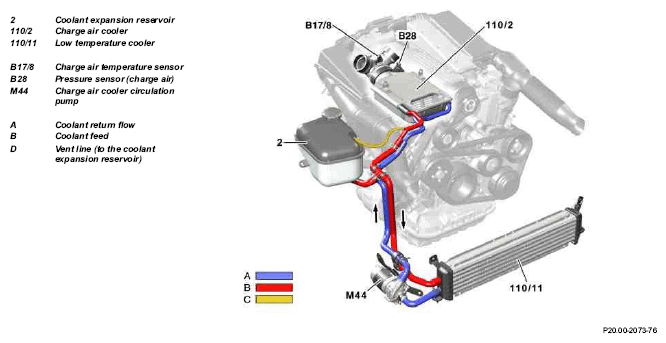

Fig 1: Identifying Locating Charge Air Cooler Position - Low Temperature Circuit
G04732078

The charge air cooler is directly mounted below the compressor.
