Removing and installing rear seat stowage box - AR91.12-P-1760M

MODELS 220.0 /1 with CODE (224c) Electrically adjustable rear single seats, with seat ventilation, seat heater and memory package

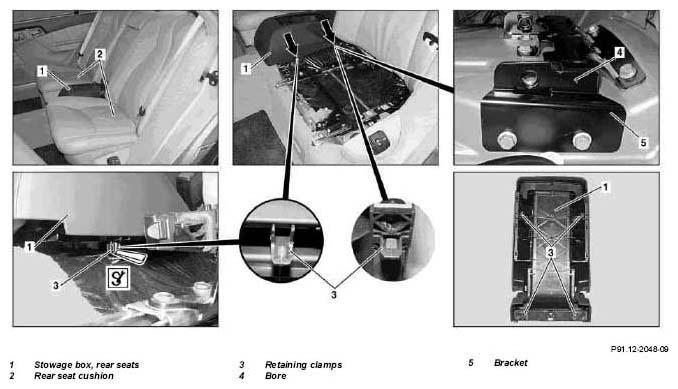

Fig 1: Identifying Rear Seat Stowage Box Remove/Install Components - Models 220.0 /1

	Remove/Install
1	Remove rear seat cushion (2).	On left and right.	AR91.12-P-1020MB
2	Releasing rear seat stowage box (1)	assembly wedge Release front retaining clamps (3, 2 pcs.) at both sides using assembly wedge and raise front of rear seat stowage box (1) slightly. Release retaining clamps in rear area (3, 2 pcs.) using relevant drift. (Insert drift in hole (4) in bracket (5)). Ensure that the retaining clamps (3) are not damaged when releasing the rear seat stowage box (1).	Figure
3	Remove rear seat stowage box (1) from bracket (5).
4	Install in the reverse order	Installation:  First place rear seat stowage box (1) onto rear seat backrest and clip into position.

Fig 2: Identifying Assembly Wedge (110 589 03 59 00)
