Remove/install seat adjuster at rear seat - AR91.12-P-1520M

MODEL 220.0 /1 /875 /878 with CODE (223b) Electrically adjustable rear bench seat with CODE (224c) Electrically adjustable rear single seats, with seat ventilation, seat heater and memory package

MODELS 220.875 /878 vis-a-vis seats

Shown on electrically adjustable rear bench seat, code 223b

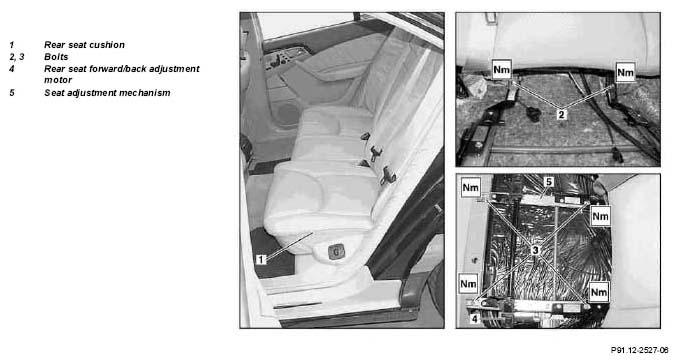

Fig 1: Identifying Seat Adjuster At Rear Seat Remove/Install Components - Shown On Electrically Adjustable Rear Bench Seat, Code 223B

	Remove/Install
1	Remove rear seat cushion (1).	Model 220.0/1 with electrically adjustable rear bench seat, code 223b.	AR91.12-P-1020M
		Model 220.0/1 with electrically adjustable individual rear seats, with seat ventilation, heated seats and memory package, code 224c.	AR91.12-P-1020MB
2	Remove screws (2) on rear seat backrest	Bolt for rear seat backrest to seat adjuster	*BA91.12-P-1001-02C
3	Move seat adjuster (5) back as far as possible, until the screws (3) are accessible
4	Unscrew screws (3) on seat adjuster (5) and remove seat adjuster (5)	Bolt for seat adjuster to frame floor	*BA91.12-P-1001-03B
5	Disconnect electrical connector from rear seat adjustment motor, forward/backward (4)
6.1	Disconnect electrical connector from rear seat cushion inclination motor, up and down	On vehicles with electrically adjustable individual rear seats, with seat ventilation, heated seats and memory package, code 224c.
7	Install in the reverse order
