Remove/Install |
|
|
 |
Risk of poisoning
caused by swallowing brake fluid. Risk of injury
caused by brake fluid coming into contact with skin and eyes. |
Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A |
|
 |
Notes on handling brake fluid |
|
AH42.50-P-0001-01A |
|
Notes on repairs to brake system |
|
AH42.00-P-0003-01A |
|
Notes on externally invisible brake fluid loss |
|
AH42.10-P-9406-02A |
|
In order to prevent paint damage, brake fluid which has escaped must be rinsed off immediately with water |
|
|
| 1 |
Open engine hood |
|
AR88.40-P-1000M |
| 2 |

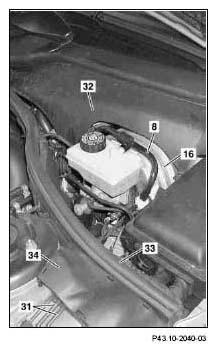

Remove master brake cylinder (1). |
Check brake master cylinder for leaks at rear of thrust rod piston. |
AR42.10-P-0300I |
| 3 |
Remove gasket (33) |
|
|
| 4 |
Detach cover (34) of cable duct |
|
|
| 5 |
Remove brake lines (31) |
|
|
| 6 |
Remove left wiper arm |
|
AR82.30-P-6100M |
| 7 |
Loosen cover (32) on the left side and pull forwards slightly |
|
|
| 8 |
Remove left cover below instrument panel |
Model 215 |
AR68.10-P-1500N |
| |
|
Model 220 |
AR68.10-P-1500M |
| 9 |
Remove stop lamp switch (S9/1) |
|
AR42.10-P-0040I |
| 10 |
Detach cover (22) of pedal assembly |
|
|
| 11 |
Pull off retainer (25) at brake booster to brake pedal and remove bolt (26) |
|
|
| 12 |
Detach connector from BAS release switch (A7/7s1) |
|
|
| 13 |
Detach connector from diaphragm travel sensor (A7/7b1) |
|
|
| 14 |
Disconnect vacuum line (8) from brake booster (16) |
Check gasket, replace if necessary. |
|
| 15 |
Unscrew mounting nuts (23, 2 pieces) of brake booster |
 |
*BA43.10-P-1002-01A |
| 16 |
Lift up cover (32) and remove brake booster (16) |
Do not damage front timing case and rubber sleeve when removing and installing brake booster. |
|
| 17 |
Install in the reverse order |
|
|
| 18 |
Bleed brake system |
|
AR42.10-P-0010I |
| 19 |
Adjust stop lamp switch (S9/1) |
Refer to: ↓ |
|
| |
|
Remove/install stop lamp switch |
AR42.10-P-0040I |
|
Check |
|
|
| 20 |
Check brake system for leaks |
|
AR42.10-P-0100-01A |
