Removing and installing molding on instrument panel - AR68.10-P-1180M

MODEL 220

Fig 1: Identifying Molding On Instrument Panel Components- Model 220

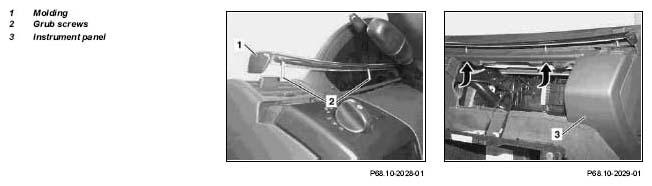

Fig 2: Identifying Instrument Panel, Molding And Grub Screws

	Removal, installation
1	Remove glove compartment		AR68.10-P-1400M
2	Unscrew mounting nuts (4) for molding (1)	Molding (1) is screwed onto instrument panel (3) from rear in area of glove compartment (arrows)
3	Pry grub screws (2) on molding (1) out of insert clips on instrument panel (3) with long wedge	Installation  : Replace defective insert clips on instrument panel	Figure
4	Disconnect electrical connectors on rear of molding (1)
5	Install in opposite order

Fig 3: Identifying Long Wedge (115 589 03 59 00)
