Removing and installing glove compartment - AR68.10-P-1400M

MODEL 215, 220

Illustrated on model 220

Fig 1: Identifying Glove Compartment Remove/Install Components - Model 215,220

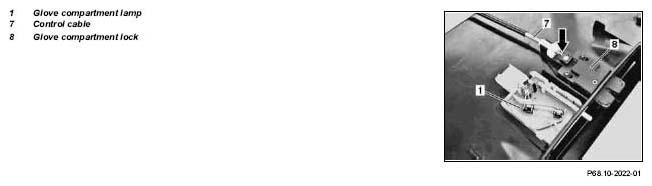

Fig 2: Locating Glove Compartment Lamp, Glove Compartment Lock And Control Cable

	Removal, installation
1	Open glove compartment lid (6)
2	Unclip glove compartment lamp (1) and disconnect connector
3	Remove plugs (2)
4	Unscrew screws (3)
5	Unscrew screws (4)
6	Pull glove compartment (5) completely out of instrument panel
7	Unhook control cable (7) on lock (8) on glove compartment (5)	When unhooking the control cable (7) ensure that the slider (arrow) is not pulled out of the lock (8)
8	Install in opposite order
