Subsequent conversion of portable cellular telephone - AZ82.70-P-0004H
MODEL 215 with CODE (278) Complete telephone preinstallation without portable with CODE (317) GSM portable cellular telephone (D2B) with CODE (854) MB portable cellular telephone except CODE (815) Dynamic navigation for portable CTEL Nokia 5110, 5130, 6110, 6150, 6210

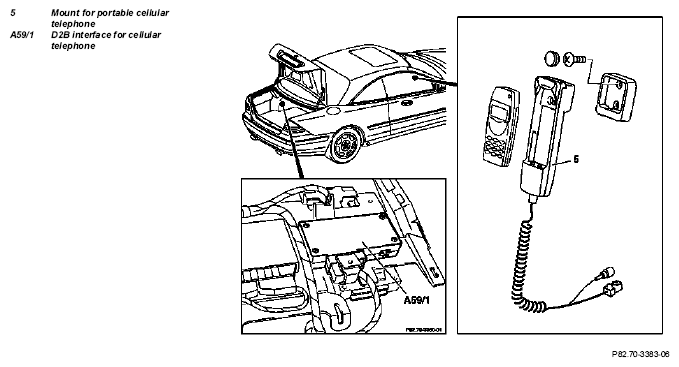

Fig 1: Identifying Subsequent Conversion Of Portable Cellular Telephone Components Location - Model 215
| Notes on converting portable cellular telephone installation kit | Models 129, 168, 170, 202, 208, 210, 215, 220 | AH82.70-P-0001-08A | |
| Removing | |||
| 1 | Connect quiescent current retention unit | *WH58.30-Z-1012-09A | |
| 2 | Disconnect ground cable of battery | ||
| AR54.10-P-0003I | |||
| 3.1 | Remove rear seat cushion | ||
| AR91.12-P-1020N | |||
| 4 | Remove holder for portable cellular telephone | ||
| 5 | Remove trunk lining on right-hand side | ||
| Install | |||
| 6 | Install holder for portable cellular telephone | ||
| AR82.70-P-8918M | |||
| 7 | Convert car interface (portable cellular telephone) | ||
| AR82.70-P-8920I | |||
| 8 | Retrofit resistor to compensator | AZ82.70-P-0001-11A | |
| 9 | Retrofit leads to compensator | AZ82.70-P-0001-04AH | |
| 10 | Retrofitting E-net compensator | AZ82.70-P-0001-10HH | |
| 11 | Carry out start-up and function test |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
| WH58.30-Z-1012-09A | Quiescent current retention unit |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
| B6 682 8615 | Conversion kit for telephone conversion to Nokia 6150 (D-net) | as required |
| B6 682 8617 | Supplement for conversion kit (compensator for D-and E-net) | 1 |
| B6 682 8618 | Conversion kit (conversion to Nokia 6210) | 1 |
