Removing and installing rear seat cushion - AR91.12-P-1020N

MODEL 215

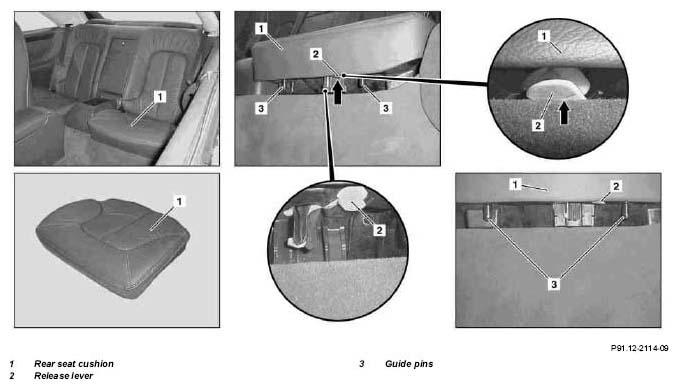

Fig 1: Identifying Rear Seat Cushion Remove/Install Components - Model 215
G04851726
REMOVINGINSTALLING Removal, installation
1 Press release lever (2) in direction of arrow and lift rear seat cushion (1)
2 Remove rear seat cushion (1) IMPORTANTInstallation:  When installing ensure that lap belt and belt buckles are free. Pay attention to proper seat of guide pins (3). Seat cushion (1) should catch with release lever (2)
3 Install in opposite order
