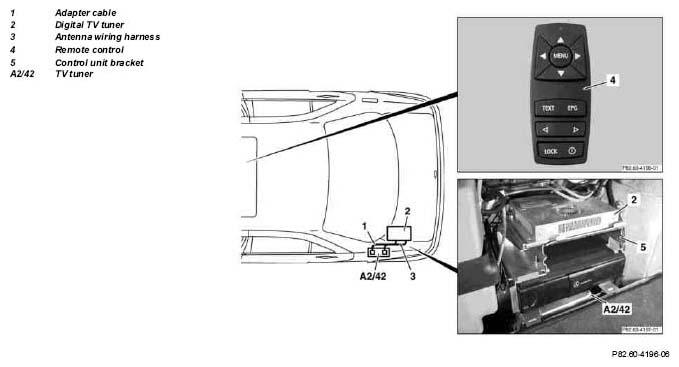

Retrofit digital TV tuner - AZ82.60-P-0007M: Notes
MODEL 220.### ## as of 1.9.02 up to 352881 with CODE (860) TV tuner as of 2003 (CODE) 803
| Remove | |||
| 1 | Disconnect battery ground cable | ||
| AR54.10-P-0003I | |||
| 2 | Connect no load current retention unit | *WH58.30-Z-1012-09A | |
| 3 | Remove left luggage compartment trim | ||
| 4 | Remove TV tuner | ||
| Install | |||
| 5 | Retrofit TV tuner wiring harness | AN82.60-P-0001-03MM | |
| 6 | Retrofit digital TV tuner control unit | AZ82.60-P-0007-01M | |
| 7 | Carry out start-up and function test | AZ82.61-P-0001-04MM | |
| 8 | Install remaining parts onto vehicle |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| B6 782 64 23 | Digital TV tuner parts kit (for vehicles with TV tuner A220 820 08 97 or 820 18 97) | 1 |
| B6 783 00 16 | Bracket | 1 |
| N913 023 005 002 | Self-locking M5 nut with collar | 4 |
| N913 023 006 001 | Self-locking M6 nut with collar | 4 |
| N000 000 001 703 | Collar bolt M5 | 4 |
| Commercially available | Battery type AAA | 2 |
