Retrofit TV tuner wiring harness - AN82.60-P-0001-03MM

  1. Prepare adapter wiring harness (1) as shown in illustration.

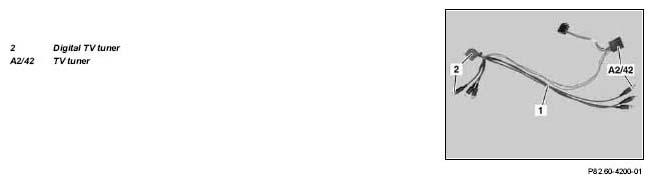

    Fig 1: Identifying Adapter Wiring Harness
    G04852431
  2. Connect adapter wiring harness (1) to TV tuner (A2/42) and digital TV tuner (2) as shown in illustration.

    IMPORTANT TV tuner (A2/42) is normally connected to AV1 connections (3 color-coded plugs). If these are occupied, connect to AV2.

    Fig 2: Identifying Adapter Wiring Harness And TV Tuner
    G04852432
  3. Connect antenna wiring harness (3) to antenna connection as shown in illustration (6).
  4. Attach the 4 coded connecting plugs (arrow) to the digital TV tuner (2).
  5. Connect antenna plug to TV tuner (A2/42).
    Fig 3: Identifying Antenna Wiring Harness And 4 Coded Connecting Plugs
    G04852433
