Retrofit DVD player - AZ82.60-P-0005M: Notes

MODELS 220.0## /1## 1# up to 31.8.02 with CODE (860) TV tuner with CODE (862) TV preinstallation

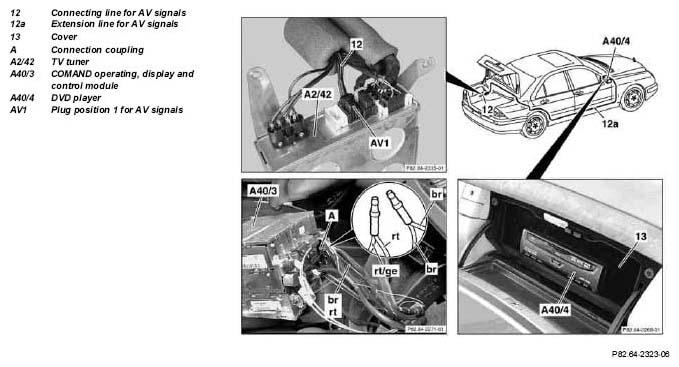

Fig 1: Identifying DVD Player Components Location - Models 220.0## /1## 1# Up To 31.8.02

	Remove
1	Connect quiescent current retention device		*WH58.30-Z-1012-09A
2	Disconnect ground cable of battery
			AR54.10-P-0003I
3	Remove glove compartment
			AR68.10-P-1400M
4	Disassemble glove compartment lid	Remove stowage compartment, part no longer required.
			AR68.10-P-1220M
5	Remove ashtray at front of center console
			AR68.20-P-2400M
6	Remove operating and display unit with control module
		With COMAND operating and display system Code 352a	AR82.85-P-7472I
7	Remove front floor covering	Fold back floor lining at right front, only until the footrest is exposed.
			AR68.20-P-2070M
8	Remove right front inner door sill molding
9	Remove paneling on A-pillar	Right.
			AR68.30-P-4050M
10	Remove overhead control panel control module
			AR82.20-P-1000M
11	Remove right sun visor
12	Lower headliner between overhead control panel and right A-pillar	Remove handle and right front inner lamp.
13	Remove rear backrest	Right side only, until passage to trunk is exposed.
		With rear bench seat electrically adjustable Code 223b	AR91.12-P-1620M
		Electrically adjustable individual rear seats with seat ventilation, heated seats and memory package Code 224c	AR91.12-P-1620MB
		Except electrically adjustable rear bench seat Code 223b, except individual rear seats, electrically adjustable, with seat ventilation, heated seats and memory package Code 224c	AR91.12-P-1620MA
14	Remove inner door sill molding in right rear
15	Remove luggage compartment trim panels	Remove left side paneling and rear wall paneling in trunk.
		Models 220.026 /028 /063 /065 /067 /070 / 073 /074 /075 /083 /084 /087 /125 /128 /165 / 167 /170 /173 /174 /175 /176 /178 /183 / 184 /187 /875 /878	AR68.30-P-4600M
16.1	Remove TV tuner	Only on vehicles with TV tuner Code 860
	Install
17.1	Retrofitting TV tuner	Only on vehicles with TV preinstallation Code 862
			Note Parts ordering notes of TV tuner.
		With COMAND operating and display system Code 352a	AN82.60-P-0001A
18	Installing DVD player	in glove compartment box.	AZ82.60-P-0005-01M
19	Retrofit DVD player wiring harness		AZ82.60-P-0005-02M
20	Fit remaining parts to vehicle
21	Check DVD player for proper function		AZ82.60-P-0005-03M
