Remove/install sensor for side airbag/window airbag - AR91.60-P-0730GH
MODELS 163.113 /154 /174 as of 1.9.01, 163.128/157/175
| Remove/install | |||
|---|---|---|---|
| 1 | Disconnect ground cable on battery | AR54.10-P-0003A | |
| 2 | Remove entrance plate | AR68.30-P-4100GH | |

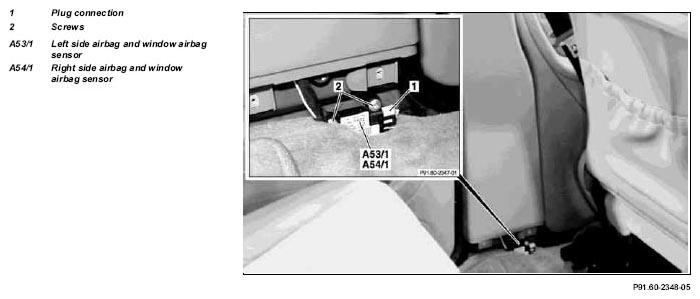

| 3 | Separate connector (1) | ||
| 4 | Unscrew screws (2) | ||
| 5 | Remove left side airbag and window airbag sensor (A53/1) or right side airbag and window airbag sensor (A54/1) | ||
| 6 | Install in the reverse order |
