Remove/install rear seat backrest release cable - AR91.12-P-1734GH

MODELS 163.136/154/172 as of 1.9.9 163.113/128/157/174/175

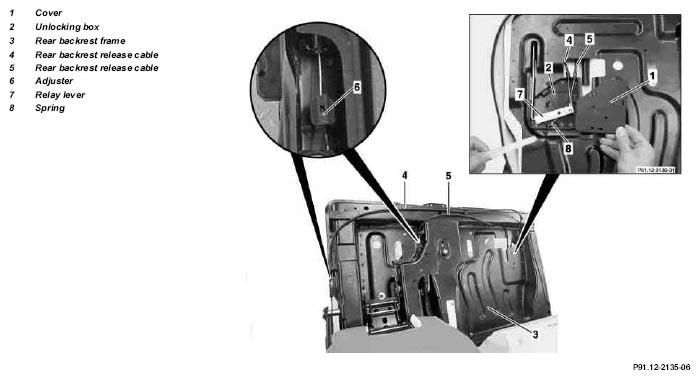

Fig 1: Identifying Rear Seat Backrest Release Cable Components

	Remove/install
	Torx bit set		Figure
1	Remove fold-down rear backrest		AR91.12-P-1720GI
2	Remove rear backrest cushion	Do not remove rear backrest covering from the rear backrest cushion.	AR91.18-P-1870GI
3	Unhook rear backrest release cable (4, 5) from the adjusters (6)	Only 1 adjuster is fitted to the 40% rear seat. Mark adjustment position on the thread. Turn the adjuster counterclockwise until the rear backrest release cables can be unhooked.
4	Remove cover (1) from unlocking box (2) on the back of the rear backrest frame (3)
5	Take out relay lever (7) and unhook rear backrest release cable (4, 5) from relay lever	Installation:  Insert spring (8) in relay lever correctly.
6	Unhook rear backrest release cable (4, 5) from rear backrest frame and remove
7	Install in the reverse order

Fig 2: Identifying Torx Bit Set (000 589 01 10 00)
