Cranking engine with starter. - AR01.10-P-0110V

ENGINE 112 in MODELS 129, 163, 170, 202, 208, 210, 211, 220, 230

ENGINE 113 in MODELS 129, 163, 202, 208, 210, 211, 215, 220, 230

ENGINE 112.945 in MODELS 463.209 /232 /233 /244 /245 /250

ENGINE 137 in MODELS 215, 220

ENGINE 285 in MODEL 240

ENGINE 113.962 in MODELS 463.206 /240 /241 /247 /248 /249 /254

ENGINE 113.982 in MODELS 463.243 /246

ENGINE 275 in MODELS 215, 220, 230

Shows model 202

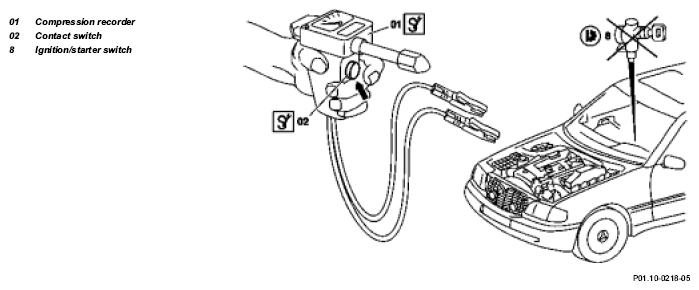

Fig 1: Identifying Cranking Engine With Starter - Shows Model 202

Courtesy of MERCEDES-BENZ USA

	Remove/install
Danger!	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the running engine	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts.	AS00.00-Z-0005-01A
1	Switch off ignition	Vehicles with Keyless-Go Code 889: press Start/Stop button repeatedly until ignition is switched off.
2	Connect compression recorder (01)	Model 129	AR01.10-P-0010-01AV
		Model 163.1	AR01.10-P-0010-01V
		Model 170	AR01.10-P-0010-01CA
		Model 210 with engine 112 up to production date 1.3.1997	AR01.10-P-0010-01B
		Model 210 with engine 112 from production date 2.3.1997,	AR01.10-P-0010-01E
		Models 202, 208 with engine 112, Models 210, 202, 208 with engine 113
		Model 211	AR01.10-P-0010-01T
		Model 215, model 220	AR01.10-P-0010-01L
		Model 230	AR01.10-P-0010-01R
		Model 240	AR01.10-P-0010-01H
		Model 463.2	AR01.10-P-0010-01GV
		Compression recorder	Figure
		Electrical connection set	Fig 2
		Adapter cable	Fig 4
3	Crank engine	Press contact switch (02) on compression recorder (01) for this step. Do not crank engine via ignition/starter switch (8), EIS [EZS] control unit or Start-Stop button.
4	Install in the reverse order
5	Read out fault memory and erase if necessary	If the ignition was switched on during the process: ↓ Stored faults which may be caused by removal and installation or test operations, must be erased from the diagnostic trouble code memories after completing the work. STAR DIAGNOSIS diagnosis system Handheld tester (HHT)	WH58.30-Z-1048-13A WH58.30-Z-1036-13A

Fig 2: Identifying Electrical Connection Kit (220 589 00 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Compression Recorder (001 589 76 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Adapter Cable (124 589 36 63 00)

Courtesy of MERCEDES-BENZ USA

Commercially available tools

Number	Designation
WH58.30-Z-1036-13A	Handheld tester (HHT)	651 100 01 99
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
