Remove/install paneling on B-pillar - AR68.30-P-4700GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

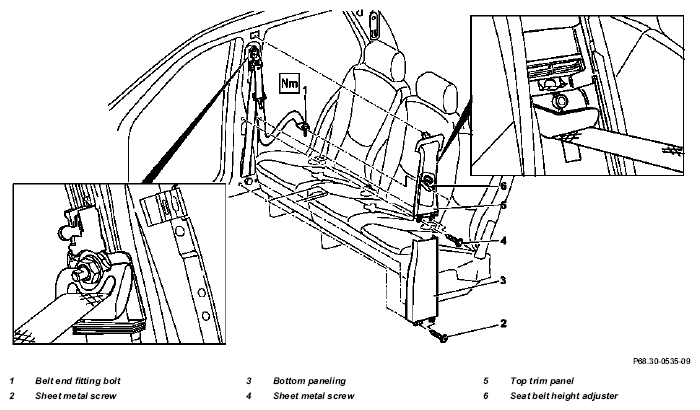

Fig 1: Identifying Paneling On B-Pillar Components

	Remove/install
Removal	Risk of fracture and cracking  of plastic paneling parts and the associated clip retainers
1	Remove door sill molding		AR68.30-P-4100GH
2	Pull off front and rear rubber door seal in the area of the B-pillar
3	Unscrew screw for belt end fitting (1) from seat		*BA91.40-P-1001-01D
4	Remove bottom paneling (3)
5.1	Remove SRS label and unscrew screw behind	As of 1.9.01.
6	Unscrew sheet metal screws (4) from upper paneling
7.1	Unclip top panel (5)	As of 1.9.01: clips are no longer present. Installation:  The lug of the seat belt adjusting device (6) must align with the recess of the paneling. Check mounting clips and replace if damaged.
8	Install in the reverse order

Safety belts/emergency tensioning retractors

Number	Designation		Model 163 up to 08/99	Model 163 as of 09/99
BA91.40-P-1001-01D	Belt end fitting screw	Nm	35	35
