Disassembling and assembling center console - AR68.20-P-2150GH

MODEL 163.113 /136 /154 /172 /174 up to 31.8.01

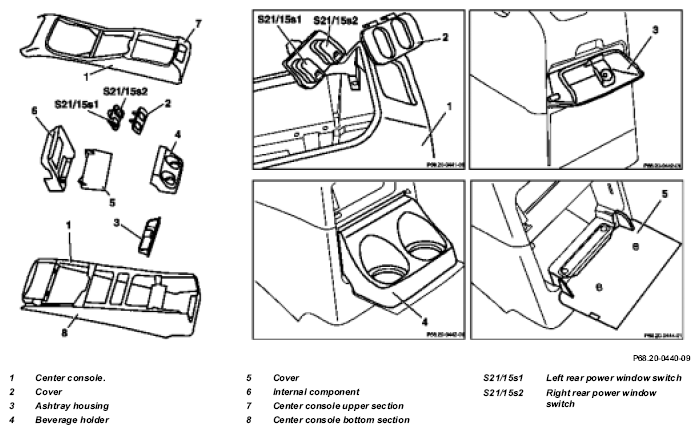

Fig 1: Identifying Center Console Components Up To 31.8.01

	Disassemble/assemble
1	Remove center console		AR68.20-P-2000GH
2	Lay center console (1) down on suitable subsurface with opening pointing downward
3	Remove rear power window switches (S21/15s1) and (S21/15s2)	Remove switch to inside and cover (2) to outside
4	Remove rear ashtray housing (3)
5	Unclip cup holder (4) from cover (5)
6	Remove cover (5) for cup holder
7	Remove inner section (6)	Installation:  Install inner section at top.
8	Separate center console on top section (7) and bottom section (8)	6 screws
9	Assemble in reverse sequence
