Removing and installing microphone - AR82.62-P-7700GH

MODELS 163.113 /154 /174 #A as of 289560, 163.113 #X as of 754620, 163.128 /157 /175 with CODE (810) Sound system

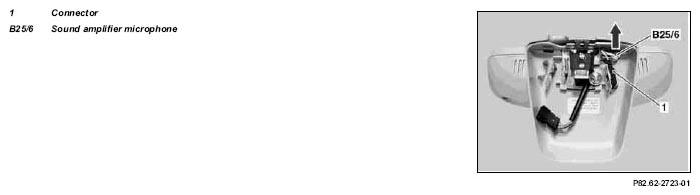

Fig 1: Identifying Microphone Components

	Removal/installation
1	Remove inside rearview mirror		AR68.40-P-0001GI
2	Unclip plug from bracket
3	Remove sound amplifier (B25/6) microphone	Do not damage wiring harness. Withdraw microphone from above.
4	Install in the reverse order
5	Check sound amplifier microphone (B25/6)		AR82.62-P-1110GH
