Remove/install wiper system - AR82.30-P-6400GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175
| Remove/install | |||
|---|---|---|---|
| Injury hazard by trapping or crushing, in extreme cases with loss of limbs when reaching into windshield wiper mechanism | Always remove ignition key when working on windshield wiper mechanism. | AS82.30-Z-0001-01A | |

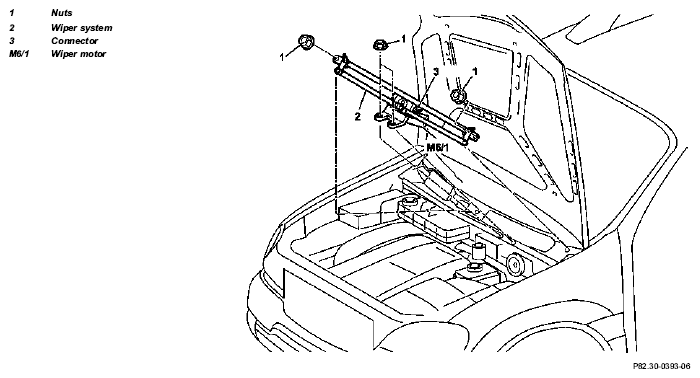

| 1 | Ensure that wiper motor is in park position | ||
| 2 | Remove cover on air intake | AR83.25-P-1405GH | |
| 3 | Unscrew nuts(1) on wiper arm | ||
| 4 | Lift wiper system (2) | ||
| 5 | Disconnect connector (3) from the wiper motor (M6/1) | ||
| 6 | Remove wiper system (2) | ||
| 7 | Install in the reverse order |
