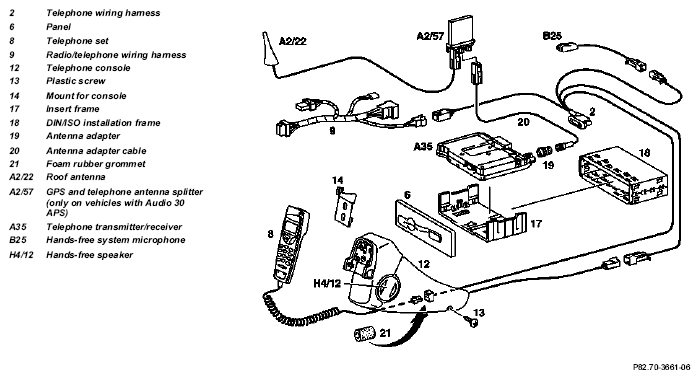

Retrofitting permanently installed D-network car phone - AZ82.70-P-0002GH
MODEL 163 as of 1.9.00 up to 30.9.01 except CODE (352a) COMAND operating and display system
Nokia 6090 permanently installed telephone
| Removal | |||
|---|---|---|---|
| 1 | Disconnect ground cable of battery | ||
| AR54.10-P-0003A | |||
| 2 | Remove radio | ||
| 3 | Remove stowage compartment below radio | ||
| 4 | Remove cover from radio |
||
| 5 | Remove AAC pushbutton control module | ||
| 6 | Tie out D-network antenna lead | ||
| Installation | |||
| 7 | Modify wiring harness and install | AZ82.70-P-0001-04GHH | |
| 8 | Installing hands-free system microphone | Vehicles up to 31.12.00. | AZ82.70-P-0001-02E |
| Vehicles as of 1.1.01. | AZ82.70-P-0001-02GH | ||
| 9 | Mount holder on telephone console and install | AZ82.70-P-0001-01GGH | |
| 10 | Installing transmitter/receiver | AZ82.70-P-0001-06GH | |
| 11 | Install D-network antenna on roof | Install antenna without modifying. |
|
| 12 | Retrofit antenna lead | AZ82.70-P-0002-01A | |
| 13 | Carry out operational check | ||
| 14 | Fit remaining parts 5-1 to vehicle |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| B6 682 94 14 | Permanently installed unit, Nokia 6090 (installation kit) | 1 |
| B6 682 94 13 | Installation frame, Nokia 6090 (DIN/ISO frame) | 1 |
| A035 545 0328 | Connector housing (9-pin) | 1 |
| A035 545 1128 | Connector (terminal) | 7 |
| A036 545 4128 | Connector housing (2-pin, green) (for microphone) | 1 |
| A034 545 0928 | Flat plug (for microphone) | 2 |
| A000 545 5073 | Lock (for microphone) | 1 |
| A010 545 2126 | Connector sleeve housing (2-pin, black) (for loudspeaker) | 1 |
| A010 545 6626 | Flat socket sleeve (for loudspeaker) | 2 |
| A000 545 4973 | Lock (for loudspeaker) | 1 |
| A000 823 0077 | Antenna adapter (straight) | 1 |
| B6 682 8613 | Antenna lead | 1 |
| B6 682 8612 | Antenna lead | 1 |
| B6 788 0390 | FA console LHS (anthracite) | 1 |
| B6 788 0389 | FA console LHS (orion gray middle) | 1 |
| B6 788 0391 | FA console LHS (java) | 1 |
| B6 788 0387 | FA console RHS (anthracite) | 1 |
| B6 788 0386 | FA console RHS (orion gray middle) | 1 |
| B6 788 0388 | FA console RHS (java) | 1 |
| A005 997 9390 | Tie strap | 5 |
| B6 682 8607 | Wiring harness (tel. on radio) | 1 |
| B6 682 8608 | CTEL antenna | 1 |
| B6 682 8609 | Cover (with microphone), color: java (as of 01/01) | 1 |
| B6 682 8610 | Cover (without microphone) color: light gray (as of 01/01) | 1 |
| B6 682 8611 | Active microphone in design function housing (up to 12/00) | 1 |
