Retrofit D-network cell phone - AZ82.70-P-0001GH
MODEL 163 as of 1.10.01
for D-net portable CTEL only

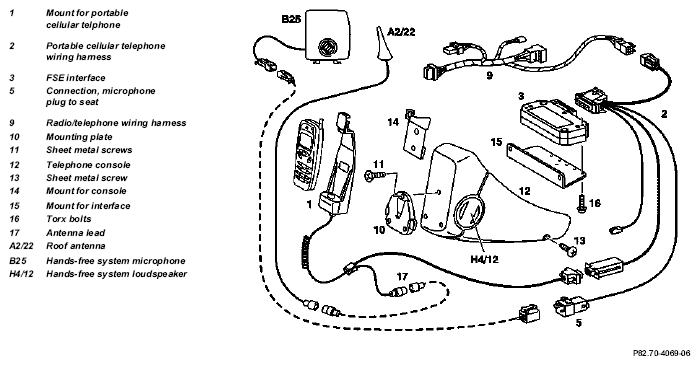

System illustration for installation
| Remove | |||
|---|---|---|---|
| 1 | Disconnect ground cable of battery | ||
| AR54.10-P-0003A | |||
| 2 | Remove radio or COMAND | ||
| 3 | Remove stowage compartment below radio | ||
| 4 | Remove cover from radio | ||
| 5 | Remove air conditioning pushbutton control module | ||
| 6 | Remove overhead control panel microphone flap | ||
| 7 | Tie antenna lead | ||
| Install | |||
| 8 | Retrofit telephone cable harness | AZ82.70-P-0001-04G | |
| 9 | Retrofit hands-free system microphone | AZ82.70-P-0001-02GH | |
| 10 | Retrofitting telephone console | AZ82.70-P-0001-01G | |
| 11 | Install antenna on roof |
||
| 12 | Check portable cellular telephone for proper function | ||
| 13 | Complete vehicle (following steps 6 to 1) |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| B6 787 57 01 | Electro kit parts set (for D-net only) | 1 |
| B6 788 04 54 | Portable cellular telephone console anthracite LHS | 1 |
| B6 788 04 59 | Portable cellular telephone console anthracite RHS | 1 |
| B6 788 04 55 | Portable cellular telephone console orion gray middle LHS | 1 |
| B6 788 04 58 | Portable cellular telephone console orion gray middle RHS | 1 |
| B6 788 04 56 | Portable cellular telephone console java LHS | 1 |
| B6 788 04 57 | Portable cellular telephone console java RHS | 1 |
| B6 682 86 09 | Cover (with microphone), color java | 1 |
| B6 682 86 10 | Cover (with microphone), color light gray | 1 |
| B6 787 58 15 | Telephone bracket, Nokia 5110/6110 | 1 |
| B6 787 58 13 | Telephone bracket, Nokia 6210 | 1 |
| B6 787 58 17 | Telephone bracket, Nokia 6310/631 0i | 1 |
| B6 787 58 14 | Telephone bracket, Siemens S/C/M35 | 1 |
| B6 787 58 12 | Telephone bracket, Siemens SL45 | 1 |
| B6 788 01 28 | Kathrein radiator-type antenna | as required |
