Dynamic route guidance, function - GF82.61-P-4003GI

MODEL 163 as of 1.9.01 with CODE (522) Modular control system (MCS) radio USA with CODE (357) Navigation system - additional unit with CODE (818b) Single CD player - additional unit with CODE (491) U.S. version

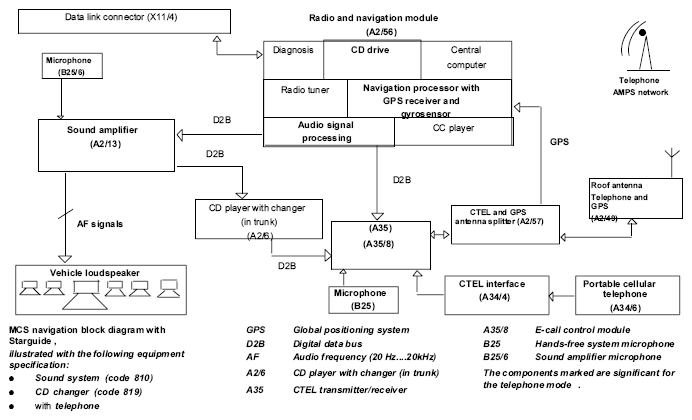

Fig 1: Identifying Dynamic Route Guidance Function

Starguide  was developed on the basis of dynamic route guidance  in Europe. In order to comply with the more comprehensive USA requirements this system also contains an additional Information Service  specially adapted to specific user requirements.

Dynamic route guidance

The desired requirements are transmitted to the S  ervice O  perating C  enter (SOC  ). The Service O  perating C  enter (SOC  ) transmits the individual and relevant traffic situations to the vehicle in the greater metropolitan area of Los Angeles.

The current route guidance and the calculation of the dynamic route guidance is accomplished by the navigation processor in the radio and navigation module (A2/56)

Moreover, traffic jams and construction sites are indicated on the radio and navigation module (A2/56) display in form of icons  .

•

•

The dynamic route guidance service will be tested in the Los Angeles area beginning in the summer of 2001.
