Data transmission for Starguide, function - GF82.85-P-3017GI

MODEL 163 as of 1.9.01 with CODE (522) Modular control system (MCS) radio USA with CODE (357) Navigation system - additional unit with CODE (316) MB GSM cellular telephone (D2B) with CODE (818b) Single CD player - additional unit with CODE (491) U.S. version

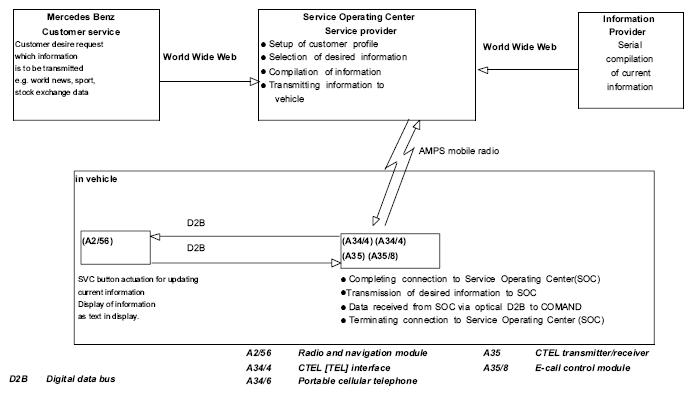

Fig 1: Connection Schematic Between Vehicle And Center Via Mobile Telephone

System concept of information service:

The vehicle owner determines his own interest profile for service information such as world news or stock exchange data. He transmits the desired information to the Mercedes Benz Customer Service. This profile is indicated to the S  ervice O  peration Center (SOC  ).

With the" SVC  " button on the radio and navigation module (A2/56)  it is possible to transmit an update request for service information to the S  ervice O  perating C  enter (SOC  ).

In the S  ervice O  peration C  enter (SOC  ) this customer profile is used for selecting information. The desired information is compiled by the information provider and transmitted to the vehicle via the S  ervice O  peration C  enter (SOC  ).

The data transmitted is indicated on the display in the radio and navigation module (A2/56)  .
