Removing and installing cover on rear seat cushion - AR91.18-P-1850GH

MODEL 163.136/154/172 up to 31.8.99

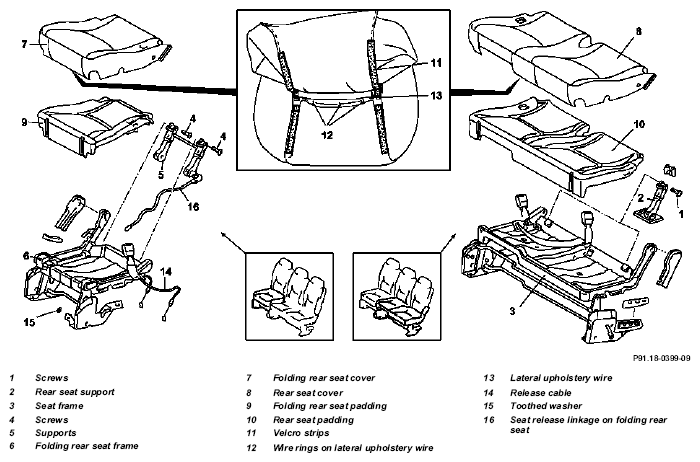

Fig 1: Identifying Rear Seat Cushion Components

	Removal, installation
1.1	Remove rear seat		AR91.12-P-1010GI
1.2	Remove folding rear seat		AR91.12-P-1010GH
2	Remove folding rear backrest		AR91.12-P-1720GH
3	Unscrew screws (1) from both rear seat supports (2)	Torx bit set	Figure
4	Remove rear seat supports (2) from seat frame (3)
5	Unscrew screws (4) from supports (5) for folding rear seat frame (6)	Torx bit set	Figure
6	Unhook release cables (14) on supports (5) from folding rear seat frame (6)
7	Pull tooth washer (15) off of seat release linkage (16) for folding rear seat
8	Unhook seat release linkage (16) for folding rear seat
9	Remove supports (5) on folding rear seat from seat frame (6)
10	Lay rear seat down on suitable surface with cover down
11	Press seat frame (3, 6) down and remove cover (7, 8) from clip groove	Press seat frame down to relieve tension on cover
12	Fold cover (7, 8) back at front over padding (9, 10)	Until Velcro strips are visible.
13	Open Velcro strips (11) between cover and padding
14	Fold cover (7, 8) back at front over padding (9, 10)	Until wire rings for lateral upholstery wire are visible.
15	Disconnect wire rings (12) from lateral upholstery wire (13) on padding (9, 10)
16	Remove cover (7, 8) together with padding (9, 10) from seat frame (3, 6)	Pay attention to belt buckle and lap belt.
17	Remove cover (7, 8) from padding (9, 10)
18	Reinstall in opposite order

Fig 2: Identifying Torx Bit Set (000 589 01 10 00)
