Remove/install airbag, side airbag and emergency tensioning retractor control module - AR91.60-P-0623GH

MODELS 163.113 /128 /136 /154 /157 /172 /174 /175 with CODE (292) Side airbag at front left and right

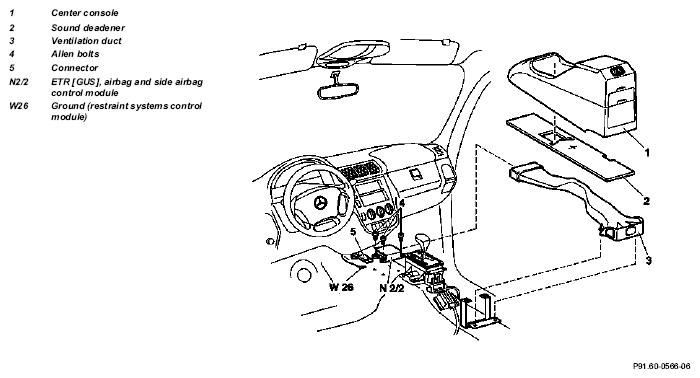

Fig 1: Identifying Side Airbag And Emergency Tensioning Retractor Control Module Components

	Remove/install
	Important instructions for performing repair, body work and welding on vehicles with airbag and emergency belt tensioner units	Models 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 414, 638, 690.6, 901, 902, 903, 904, 905 Model 461 with engine 602.983 Model 463 up to 30.11.00 Type WD141, WD241, WD341, WD641, WD741, XD141, XD241, XD341, XD441, XD541, XD641, XD741, YD141, YD241, YD341, YD441, YD541, YD641, YD741	AH91.00-P-0002-01B
	Assessment of airbag and belt tensioner units in accident vehicles	Models 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 203, 208, 209, 210, 211.004/006/ 016/ 061/ 065/ 070, 215, 220, 230, 414, 463, 638, 901, 902, 903, 904, 905 Type WD141, WD241, WD341, WD641, WD741, XD141, XD241, XD341, XD441, XD541, XD641, XD741, YD141, YD241, YD341, YD441, YD541, YD641, YD741	AH91.00-P-0006-01B
1	Turn ignition key to position "0"	In order to prevent error codes.
2	Disconnect ground cable of battery		AR54.10-P-0003A
3	Remove center console		AR68.20-P-2000GH
4.1	Remove sound deadener (2)	Up to 31.8.01.
4.2	Lift up front part of sound deadener (2)	As of 1.9.01.
5.1	Remove ventilation duct (3)	Only up to 31.8.01: 2 screws on rear ventilation duct.
6	Detach connector (5) from emergency tensioning retractor, airbag and side airbag control module (N2/2)
7	Unscrew hexagon socket head screws (4) for the emergency tensioning retractor, airbag and side airbag control module (N2/2) from the transmission tunnel	Installation:  Observe attachment of the ground for the restraint systems control module (W26) at the left rear screw of the control module.
8	Remove emergency tensioning retractor, airbag and side airbag control module (N2/2)	Installation:  The arrow on the housing must point in the direction of travel. For models 163.154/172 within the chassis numbers A145273 up to A150476 ↓
	Notes on replacing the control module		SI91.60-P-0005A
9	Install in the reverse order
10	Program and parameterize new emergency tensioning retractor, airbag and side airbag control module (N2/2)	See Diagnosis Manual, Body.
