Removing and installing glove compartment lid - AR68.10-P-1200GH

MODEL 163.136 /154 /172 up to 31.8.99

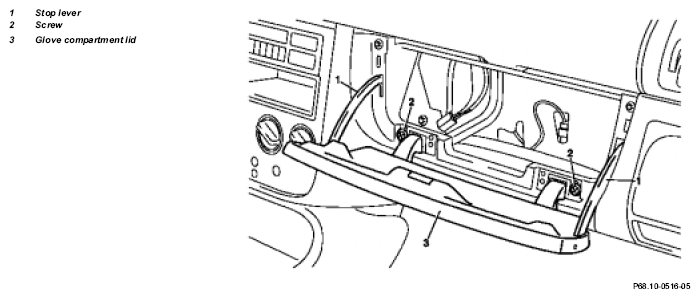

Fig 1: Identifying Glove Compartment Lid, Screw & Stop Lever

	Removal, installation
1	Remove glove compartment	Installation:  Adjust glove compartment lid and check for proper function	AR68.10-P-1400GH
2	Unhook stop lever (1) on left and right on instrument panel	Slightly lift glove compartment lid (3) and unhook stop lever (1).
3	Unscrew screws (2) on hinge
4	Remove glove compartment lid (3)
5	Reinstall in opposite order
