Wind noise at outside mirror on left and/or right front door - AF88.70-P-1100AG

MODEL 163.154 #A as of 289560,

163.113 /128 #X as of 754620,

163.113 /174 #A as of 289560 up to 486952,

163.128 /157 /175 #A up to 486952

Operation no. of the operation texts or standard texts and flat rates

Range	Op. no.	Operation text	Flat rate	Acc. no.	Code
P	024204	Foam on base of outside rearview mirror, Location:.... install	004 WU	81 101 39	-

Damage Code	Cause	Remedy
81 101 39	Insufficient seal pressure between door and base of mirror mount.	1 Remove outside rearview mirror (1) only on side where wind noise occurs.	AR88.70-P-9000GH
81 101 39			Fig 2
		2 Install foam (2) onto base of mirror mount around wiring harness.
		3 Reinstall outside rearview mirror (1). Replace foam on inside of door around hole where mirror wiring harness comes through.	AR88.70-P-9000GH

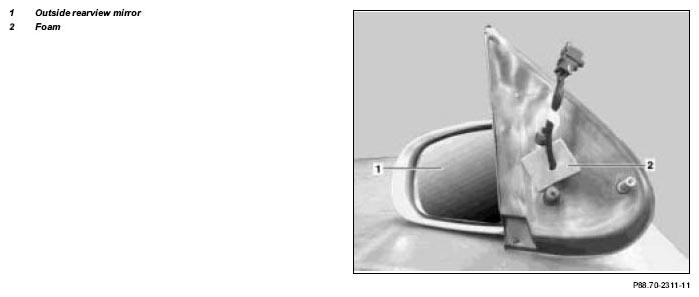

Fig 1: Identifying Outside Rearview Mirror & Foam

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Parts ordering notes

Part no.	Designation	Quantity
163 682 25 28	Foam	2
