Remove/install complete outside rearview mirror - AR88.70-P-9000GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

Illustrated up to VIN A289564, X754619

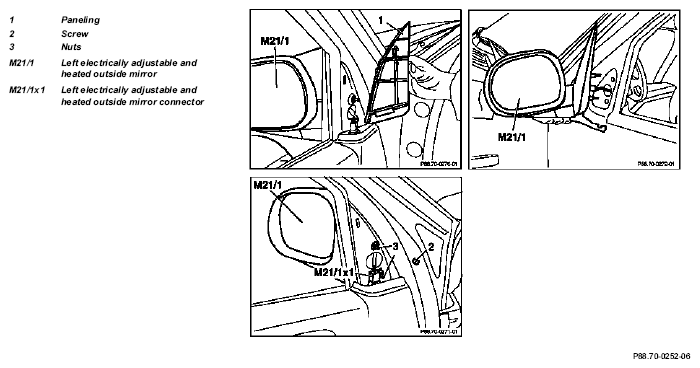

Fig 1: Identifying Complete Outside Rearview Mirror

	Removing and installing
1	Press off paneling (1) with assembly wedge	As of VIN A289565, X754620: If present, disconnect connector from loudspeaker. Assembly wedge	Figure
2	Unscrew screw (2)
3	Unscrew nut (3)	Secure outside rearview mirror against falling down Installation:  Up to VIN A289564, X754619 fasten mounting lug for connector for left electrically adjustable and heated outside rearview mirror (M21/1x1) or for connector for right electrically adjustable and heated outside rearview mirror on bottom stud bolt.
4	Separate connector for left electrically adjustable and heated outside rearview mirror (M21/1x1) or connector for right electrically adjustable and heated outside rearview mirror.
5	Remove left electrically adjustable and heated outside rearview mirror (M21/1) or right electrically adjustable and heated outside rearview mirror
6	Install in the reverse order

Fig 2: Identifying Assembly wedge (110 589 03 59 00)
