Remove/install telescoping nozzle for headlamp cleaning system - AR82.15-P-6100GH

MODELS 163.113 /128 /154 /157 /172 /175 with CODE (600a) Headlamp cleaning system

MODEL 163.174

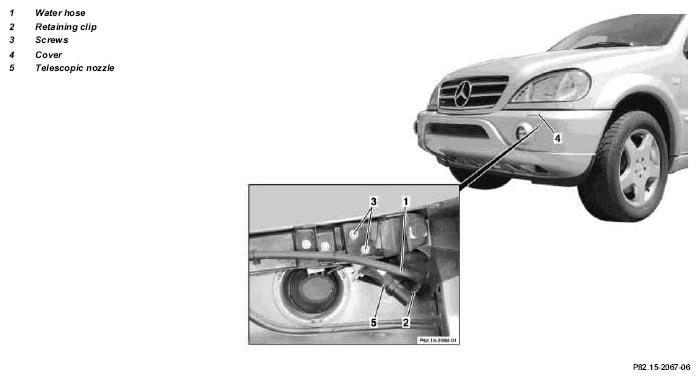

Fig 1: Identifying Headlamp Cleaning System Components

	Remove/Install
1	Remove the front bumper	with visual enhancement package, code U49.	AR88.20-P-2000GI
		As of VIN A289565, X754620.	AR88.20-P-2000GJ
2	Remove retaining clip (2) and water hose (1) from telescopic nozzle
3	Unscrew screws (3) from mount of telescopic nozzle
4	Remove cover (4) from telescopic nozzle	Risk of breakage! Press telescopic nozzle upward to obtain access to the retaining lugs for the cover from above
5	Remove telescopic nozzle (5) together with mount
6.1	Remove mount from telescoping nozzle	Only when the telescopic nozzle is replaced.
7	Install in the reverse order
