Remove/install front bumper - AR88.20-P-2000GI

MODEL 163.113 /128 /136 /154 /157 /172 /175 with CODE (U49) Styling package

MODEL 163.174

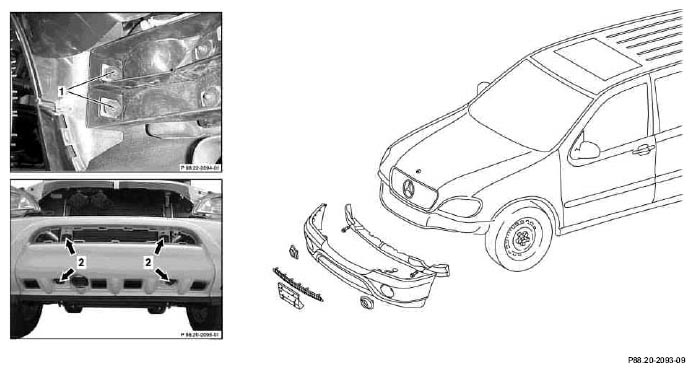

Fig 1: Identifying Front Bumper Remove/Install Components

G04609090

	Remove, Install
1	Unscrew nuts(1)	On left and right inside of bumper.	*BA88.20-P-1001-01B
2	Remove bumper grill	Do not damage bumper, bumper grate and grate mounts Loosen retainers and pull to outside Pulling hook	Figure
3	Remove outside temperature sensor from bumper
4	Unscrew screw (2)		*BA88.20-P-1003-01B
5	Remove bumper toward front	Do not damage paint.
6	Disconnect electrical connector from fog lamp/ Parktronic
7	Disconnect splash water hose	Plug splash water hose. Installation: Fill water reservoir.
8	Install in the reverse order

TORQUE SPECIFICATION

Bumper

Number	Designation		Model Series 163
BA88.20-P-1001-01B	Nut, front bumper on outer mount	Nm	8
BA88.20-P-1003-01B	Nut, front bumper on frame	Nm	8

Fig 2: Identifying Hooked Extraction Tool (140 589 02 33 00)

G04609091
