Removing and installing bulbs of headlamp unit - AR82.10-P-1201GH

MODEL 163.113 /136 /154 /172 /174 up to 31.8.01

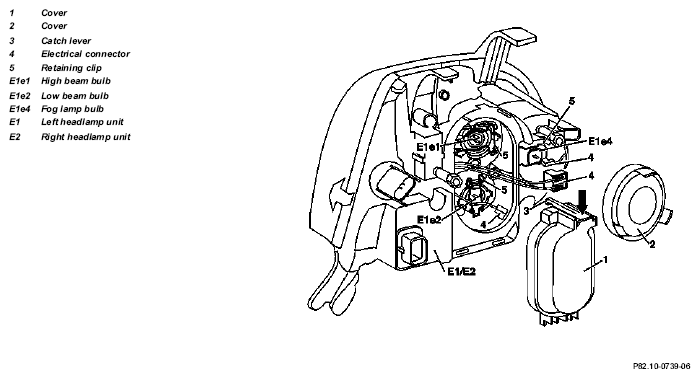

Fig 1: Identifying Headlamp Unit Bulbs Components

	Remove/install
1	Open hood and raise to vertical position	Up to 31.08.99	AR88.40-P-1000GH
		As of 01.09.99	AR88.40-P-1000GI
2	Release cover (1) by pressing on catch lever (3, direction of arrow) and remove
3	Remove cover (2)
4	Disconnect electrical connectors (4) for bulbs
5	Open retaining clips (5) for bulbs
6	Remove bulbs (E1e1, E1e2, E1e4)	Do not touch bulbs with bare fingers, use grease-free, soft cloth. Installation:  Ensure bulb is correctly installed.
7	Install in the reverse order
8	Perform function check
