Open engine hood, move to upright position and close - AR88.40-P-1000GH

MODEL 163.136 /154 /172 #A up to 145272, 163.136 /154 /172 #X up to 708318

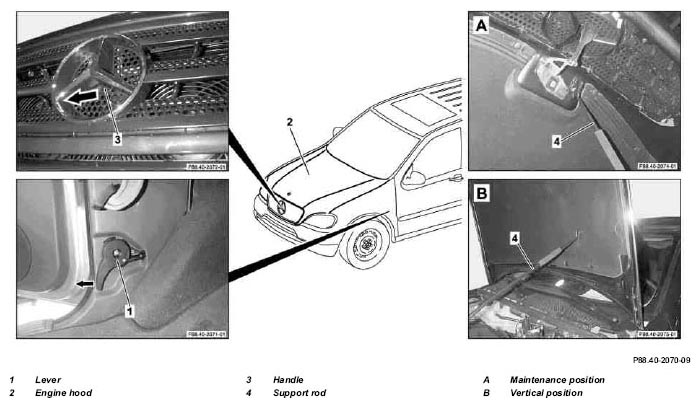

Fig 1: Identifying Engine Hood Components & Positions

	Hazard  from touching parts which conduct high voltages	Do not touch parts carrying high voltages. Persons who wear electronic implants (e.g. heart pacemakers) must not carry out work on the ignition system.	AS15.10-Z-0001-01A
	Risk of injury  to fingers being jammed or squeezed  when removing and installing or aligning hoods, doors, trunk lid/tailgate or sliding roof.	When moving components, ensure that no body parts or limbs are within the operating range of moving parts.	AS00.00-Z-0011-01A
1	Pull lever (1) in left side of footwell to unlock the engine hood (2)	Engine hood jumps open; lift engine hood slightly if necessary.
2	Pull handle (3) out of radiator grille as far as the stop and open engine hood	Do not lift with handle. The windshield wiper arms must not be folded forward.
3	Move engine hood with support rod (4) to maintenance position (A).
4	Position engine hood (2) vertically and position in vertical position (B) with support rod.
5	Unhook support rod (4) from engine hood and install in mount at upper frame cross member.	Engine hood can fall down.
6	Close engine hood (2)	Place your hands only on the front edges of the hood.
7	Pull engine hood firmly upwards to check the latching function of the engine hood lock
