Injury hazard
from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. |
Always remove ignition key before working on windshield wiper mechanism. |
AS82.30-Z-0001-01A |
| 1 |

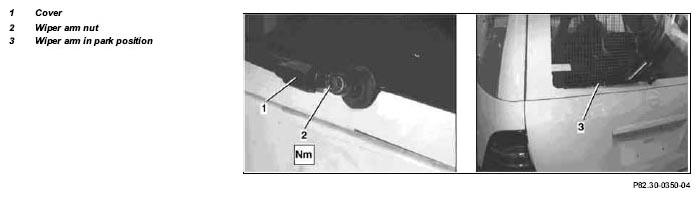

Open cover (1) |
Wiper motor must be in park position, if necessary ↓ |
|
| |
|
move wiper motor to park position |
AR82.30-P-6800-01E |
| 2 |
Unscrew nut on wiper arm (2) |
Caution, do not damage washer nozzle |
|
| |
|
 |
*BA82.30-P-1001-01C |
| 3 |
Remove wiper arm (3) |
Pivot wiper arm back and remove, if necessary ↓ |
|
| |
|
 |
Fig 2 |
| 4 |
Reinstall in opposite order |
When installing:
Attach wiper arms so that wiper arm points toward left (driver's side) |
|
