Removing and installing rear window wiper motor - AR82.30-P-6900GH
MODEL 163
| Removal, installation | |||
|---|---|---|---|
| Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. | Always remove ignition key before working on windshield wiper mechanism. | AS82.30-Z-0001-01A | |
| 1 | Move wiper motor to park position | AR82.30-P-6800-01E | |
| 2 | Remove line on tailgate | AR72.20-P-3520GH | |
| 3 | Remove wiper arm on tailgate | AR82.30-P-6910GH | |
| 4 | Remove center high-mounted stop lamp | AR82.10-P-5375GH | |

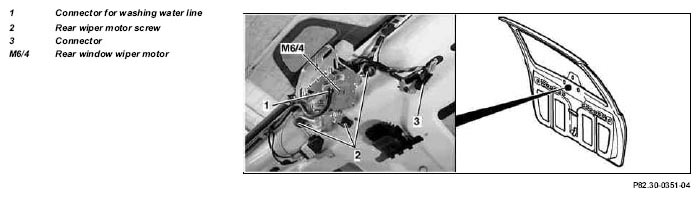

| 5 | Disconnect connector (3) | ||
| 6 | Disconnect washing water line from connector (1) | ||
| 7 | Unscrew screw for wiper system on tailgate (2) | ||
| 8 | Remove rear window wiper motor (M6/4) | ||
| 9 | Reinstall in opposite order |
