Remove and install power window on rear door - AR72.12-P-1810GH

MODEL 163

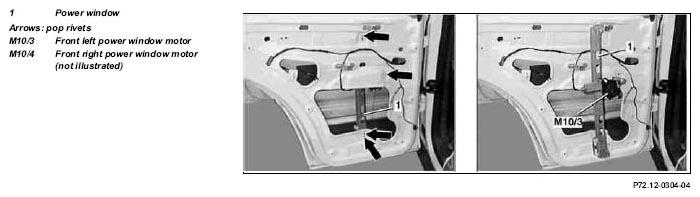

Fig 1: Identifying Power Window Components On Rear Door

	Removing
1	Remove crank window		AR72.12-P-1910GH
2	Disconnect power window motor connector (M10/3 and M10/4)
3	Drill out pop rivets (arrows, 4 each)	Drive out rivet residues with suitable punch Do not damage inner door panel Remove rivet residues and drilling chips from door, corrosion hazard
4	Remove power window (1) out of inner door panel and remove through installation opening toward bottom.
	Installing
5	Insert window lift mechanism (1) through installation opening from below and hook into inner door panel from inside
6	Rivet window lift mechanism (1) with pop rivets (arrows).		*WH58.30-Z-1001-29A
7	Grease guide rail with multi-purpose paste		*BR00.45-Z-1009-06A
8	Connect connector to power window motor (M10/3 or M10/4)
9	Install crank window		AR72.12-P-1910GH

Commercially available tools

Number	Designation
WH58.30-Z-1001-29A	Lever riveting device

Repair materials

Number	Designation	Order number
BR00.45-Z-1009-06A	Multi-purpose paste	A 000 989 80 51 10
