Remove/install Parktronic system (PTS) sensors in front bumper - AR54.65-P-0001GH

MODEL 163.113 /128 /154 /157 /174 /175 with CODE (220a) Parktronic System (PTS)

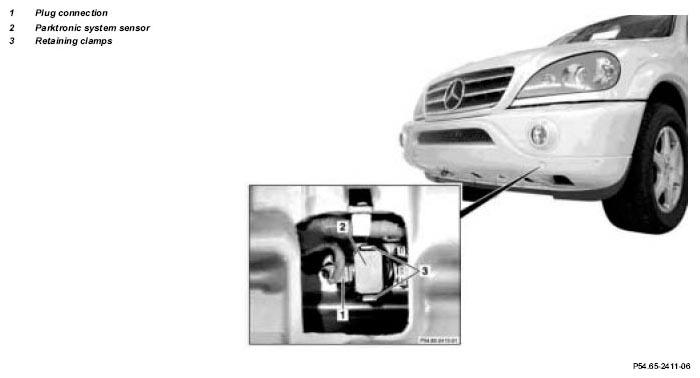

Fig 1: Identifying Front Bumper Parktronic System (PTS) Sensors Components

	Remove/install
1	Remove front bumper	with styling package, code U49.	AR88.20-P-2000GI
		As of 01.09.01.	AR88.20-P-2000GJ
2	Put down bumper safely in a suitable place	Do not damage paintwork.
3	Disconnect connector (1) from Parktronic system sensor (2)
4	Remove Parktronic system sensor (2) from the bumper	Do not brake off the retaining clamps (3).
		Release tool	Fig 2
5	Install in the reverse order

Fig 2: Identifying Release Tool (168 589 02 31 00)
