Removing and installing rear bumper - AR88.20-P-2200F

MODEL 210 up to 31.5.99

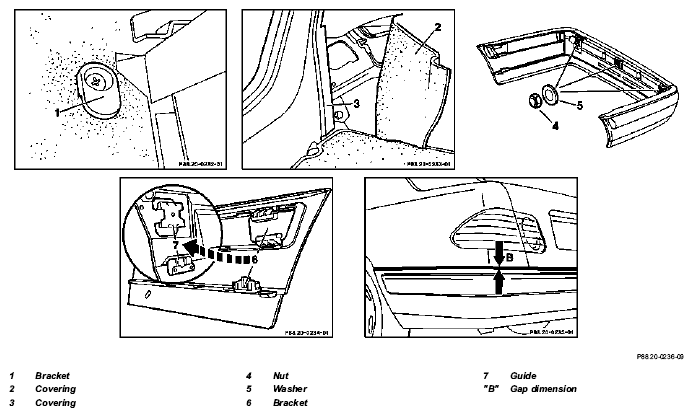

Fig 1: Identifying Rear Bumper Components (Model 210 Up To 31.5.99)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Open trunk lid
2	Remove holder (1) on right in trunk recess
3	Pull side covering (2) out from below center covering (3)
4	Unscrew nut (4), remove washer (5)	Remove center washer with magnet
			*BA88.20-P-1002-01A
5	Remove bumper with second mechanic	Installation:  Position guide (6) on bracket (7) Check joint gap "B", correct bumper if required Check inner fender in relation to side of bumper	*BE88.20-P-1002-01A
6.1	Transfer M AMG bumper	See Installation instructions for accessories ↓
		Retrofitting M AMG paneling sections	AZ88.00-P-0001H
7	Install in opposite order

Joint gaps for bumper

Number	Designation			Model 210
BE88.20-P-1002-01A	Dimension	Front bumper, joint gap "B"	mm	6
		See figure		AR88.20-P-2200F

Bumper

Number	Designation		Model 210
BA88.20-P-1002-01A	Rear bumper nuts on rear center piece	Nm	20
