Removal, installation |
|
|
| 1 |
Open engine hood |
|
AR88.40-P-1000F |
| 2 |
Remove guard screen on front of auxiliary fan |
On vehicles with air conditioning, code 580, code 581a |
|
| 3 |

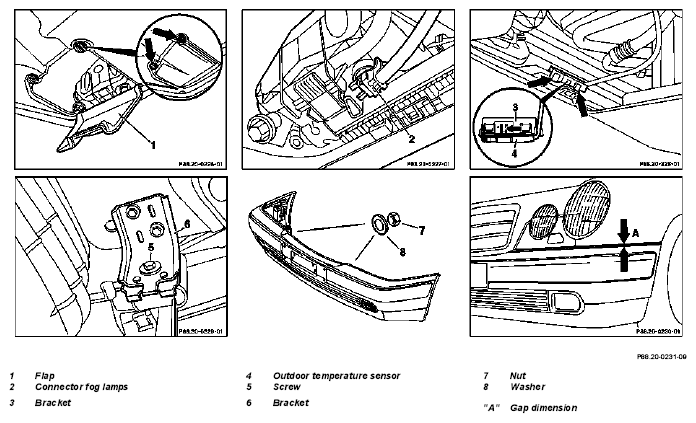

Open cover flap (1) in bottom engine compartment paneling |
|
|
| 4 |
Separate connector (2) from fog lamp |
|
|
| 5 |
Press holder (3) for outside temperature sensor (4) outward off of bumper cover |
On vehicles with outside temperature indicator code 240a |
|
| 6 |
Unclip outside temperature sensor (4) from holder (3) and push inward through bumper cover |
On vehicles with outside temperature indicator code 240a |
|
| 7 |
Unscrew screw (5) in bracket (6) |
|
|
| 8 |
Unscrew nuts (7), remove washers (8) |
 |
*BA88.20-P-1001-01A |
| 9 |
Remove bumper |
 Installation:
Check joint gap "A", correct bumper, if necessary |
*BE88.20-P-1001-01A |
| 10.1 |
Transfer M-AMG bumper |
See Installation instructions for accessories ↓ |
|
| |
|
Retrofitting M-AMG trim parts |
AZ88.00-P-0001H |
| |
|
Installation:
Shim up front apron Models 210.055/072/074/274 M-AMG |
AR88.20-P-1000-01A |
| 11 |
Reinstall in opposite order |
|
|
