Function Test

NOTE: Before performing function test, see TEST PREPARATION .

Use function tests chart to determine which system test to perform. See Fig 1. If problem is identified, perform appropriate test procedure under SYSTEM TESTS . If problem is not identified, continue diagnosis. See SYMPTOM INDEX .

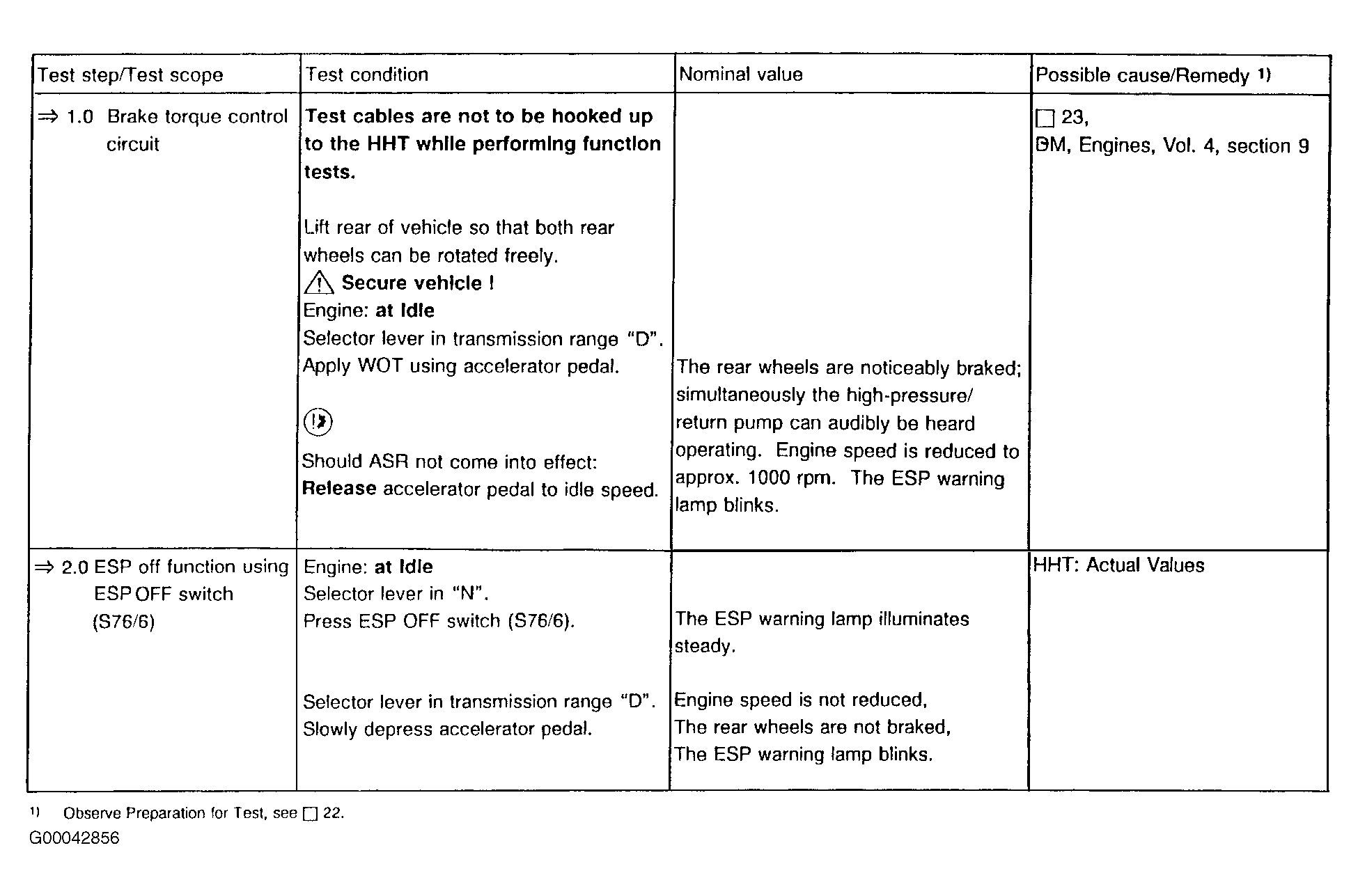

Fig 1: Identifying Function Test
G00042856Courtesy of DAIMLERCHRYSLER CORPORATION
