Checking vehicle level at front and rear axles - AR40.20-P-0300A

MODEL 129 except CODE (216) Adaptive damping system (ADS) with level control except CODE (216) Adaptive damping system (ADS II) with electronic level control

MODEL 170 up to 28.2.00

MODEL 170 AMG lowering kit

MODEL 202, 208

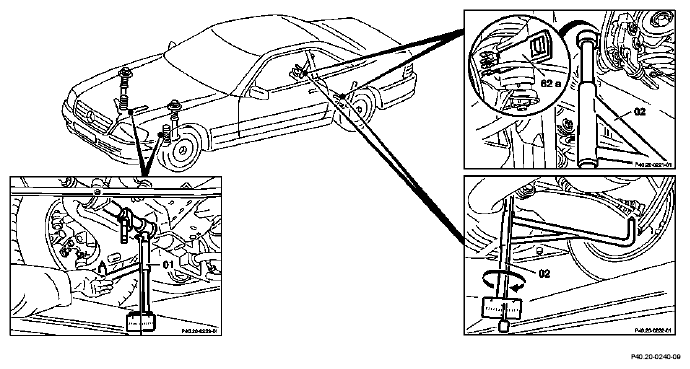

Fig 1: Locating Vehicle Level Front And Rear Axles - Model 170, 202, 208

	Inspecting, setting
1	Observe general information on chassis alignment	Following repair work forcefully move vehicle up and down several times before measuring.	AR40.20-P-0201A
2	Check vehicle level at front axle	Insert measuring device (01) between the retaining bolts of the wishbone bearing. Position contact arm of measuring device (01) on transverse control arm and read off vehicle level value measured from center of vehicle.	Fig 2
		Model 129	*BE40.20-P-1001-02B
		Model 170	*BE40.20-P-1001-02E
		Model 202	*BE40.20-P-1001-02C
		Model 208	*BE40.20-P-1001-02F
3	Check vehicle level at rear axle	Model 170 Loosen right rear frame brace and swivel to one side.	*BA61.10-P-1001-01A
		Place the swivel arm of the measuring device (02) on the inside of the spring control arm. Position contact arm on the rear axle shaft and read off the plumb value of vehicle level, viewed from the center of the vehicle. On vehicles with ASR, remove bracket (62a) from spring control arm.	Fig 3
		Model 129	*BE40.20-P-1001-03B
		Model 170	*BE40.20-P-1001-03E
		Model 202	*BE40.20-P-1001-03C
		Model 208	*BE40.20-P-1001-03F
4	Adjust vehicle level at the front and rear axle	If the vehicle level at the front or rear axle outside the tolerance: ↓ Adjust the vehicle level by changing the springs or spring rubber mounts
		Model 129, model 202 up to 12/95	AR40.20-P-0300-01A
		Model 170, 202, 208 as of 01/96	AR40.20-P-0300-01B
		On vehicles with level control a too low vehicle level may not be corrected by changing the level controller link rod (control point): ↓ Check function of level control. If OK: ↓ Adjust the vehicle level by changing the spring or spring rubber mount.
	Modified front and rear springs	Model 202	BT32.20-P-0001-01A

Number	Designation		Model 129 except	Model 129	Model 129 with AMG sport suspension
BE40.20-P-1001-02B	Vehicle level - front axle	mm	+5 (-15/+10)	+14 (-15/+10)	-15 (-10/+5)

Number	Designation		Model 202 suspension for increased ground clearance	Type 202.028
BE40.20-P-1001-02C	Vehicle level - front axle	mm	+46 (-15/+10)	+33 (-15/+10)

Number	Designation		Model 202 suspension for increased ground clearance	Models 202.018/020/022/023/026/078/080/083/086/120/121/125/182 with AMG-sport suspension	Type 202.028	Models 202.024/025/028/029/085/08 9/128/133/134/188/193/194 with AMG sport suspension
BE40.20-P-1001-03C	Vehicle level - rear axle	mm	+45±10	-3 (-10/+5)	+29±10	0 (-10/+5)

FRAME FLOOR ASSEMBLY

Fig 2: Identifying Measuring Device (201 589 00 21 00)

Fig 3: Identifying Measuring Device (201 589 01 21 00)
