Carry out distance and comparison measurements on front and rear axles - AR40.30-P-0402C

MODEL 210

Front axle

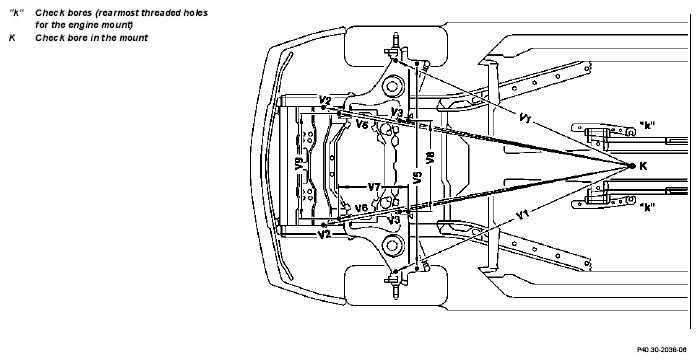

Fig 1: Identifying Distance And Comparison Measurements On Front Axles - Model 210

Rear axle

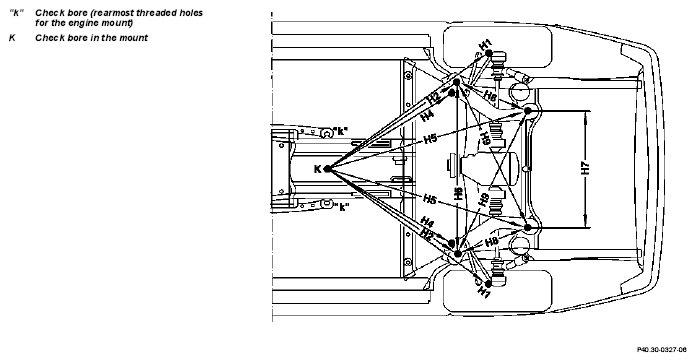

Fig 2: Identifying Distance And Comparison Measurements On Rear Axles - Model 210

1	Preparations for distance and comparison measurements		AR40.30-P-0401B
2	Carrying out distance and comparison measurements on front axle		*BE40.30-P-1001-06B  AR40.30-P-0402-01D
3	Carry out distance and comparison measurements on rear axle		*BE40.30-P-1001-05B  AR40.30-P-0402-02A

Test values for distance and comparison measurement on front axle

Number	Designation			Model 210 except 210.08/28	Models 210.08/28
BE40.30-P-1001-06B	Dimension	V1	mm	4	4
		V2	mm	4	4
		V3	mm	3	3
		V4	mm	-	-
		V5	mm	992 ± 3	1005 ± 3
		V6	mm	3	3
		V7	mm	403 ± 3	280 ± 2
		V8	mm	661 ± 3	680 ± 3
		V9	mm	667 ± 3	680 ± 3
		V10	mm	-	-
		See picture in		AR40.30-P-0402-01D	AR40.30-P-0402-01D

Test values for distance and comparison measurements on rear axle

Number	Designation			Model 210
BE40.30-P-1001-05B	Dimension	H1	mm	4
		H2	mm	3
		H4	mm	4
		H5	mm	6
		H6	mm	1082 (± 2)
		H7	mm	714 (± 2)
		H8	mm	3
		H9	mm	3
		See picture in		AR40.30-P-0402-02A

Fig 3: Identifying Telescopic Measuring Rod (124 589 01 19 00)

Fig 4: Identifying Telescopic Measuring Rod (124 589 02 19 00)

Fig 5: Identifying Mount (170 589 00 63 00)

Fig 6: Identifying Set Of Measurement Fixtures (140 589 09 63 00)

Fig 7: Identifying Connecting Pieces (124 589 08 63 00)
