Removing and installing evaporator housing - AR83.30-P-5200G
MODEL 170 with CODE (580) Air conditioning or Tempmatic for USA with CODE (581a) Air conditioning (automatic)
Fig 1: Identifying Evaporator Housing Remove/Install Components - Model 170 With Code (580) (1 Of 6)
Fig 2: Identifying Evaporator Housing Remove/Install Components - Model 170 With Code (580) (2 Of 6)
Fig 3: Identifying Evaporator Housing Remove/Install Components - Model 170 With Code (580) (3 Of 6)
Fig 4: Identifying Evaporator Housing Remove/Install Components - Model 170 With Code (580) (4 Of 6)
Fig 5: Identifying Evaporator Housing Remove/Install Components - Model 170 With Code (580) (5 Of 6)
Fig 6: Identifying Evaporator Housing Remove/Install Components - Model 170 With Code (580) (6 Of 6)
| Removal, installation | |||
| Risk of injury to skin and eyes from scalding with hot coolant which splashes out. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage bottles. Wear protective gloves, protective clothing and eye protection. |
AS20.00-Z-0001-01A | |
| 1 | Relieve pressure in cooling system | ||
| 2 | Drain off coolant | AR20.00-P-1142HG | |

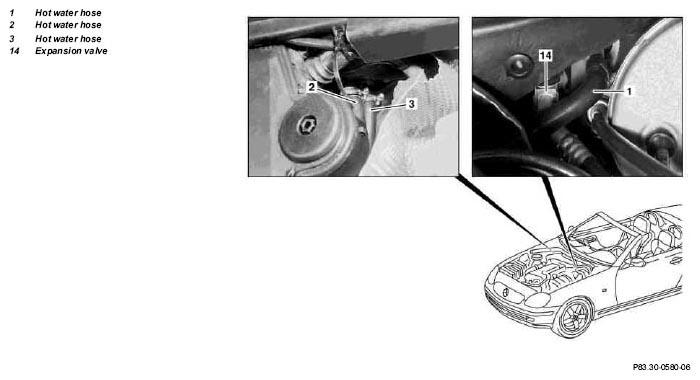

| 3 | Loosen hose clamp on hot water hose (1) | ||
| 4 | Pull off hot water hose (1) | ||
| 5 | Loosen hose clamps on hot water hoses (2+3) | ||
| 6 | Pull off hot water hoses (2+3) | ||
| Risk of explosion from welding or brazing work on closed air conditioning system. Risk of poisoning from inhaling overheated refrigerant vapors. Risk of injury from skin and eye contact with liquid refrigerant. | Do not carry out any welding work on the closed air conditioning system or in the surrounding area. No smoking or naked flames. Wear eye protection and protective gloves. Work only in well ventilated areas. Do not carry out repair work on the circuit of the air conditioning system unless the system is drained. | AS83.00-Z-0001-01A | |
| N | Drain air conditioning (recycle) | ||
| 8 | Remove expansion valve (14) | AR83.30-P-5520G | |

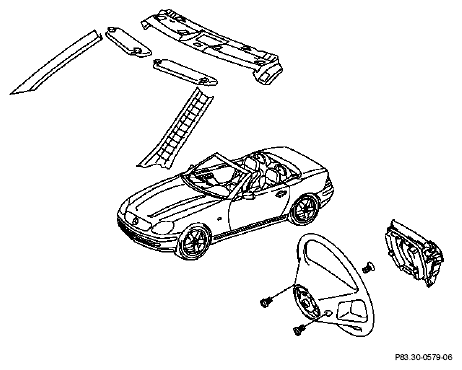

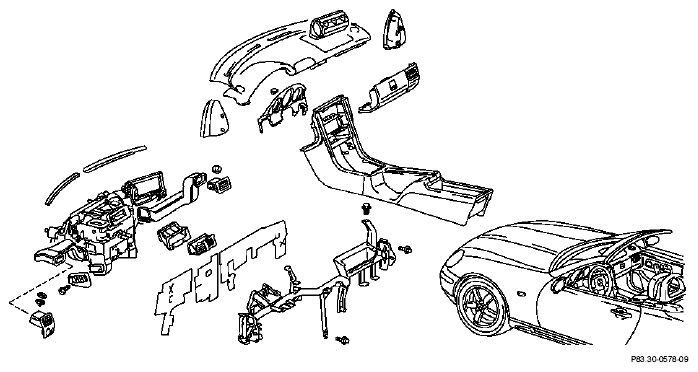

| 9 | Remove instrument panel | AR68.10-P-1000G | |
| 10 | Remove insulating mats | ||

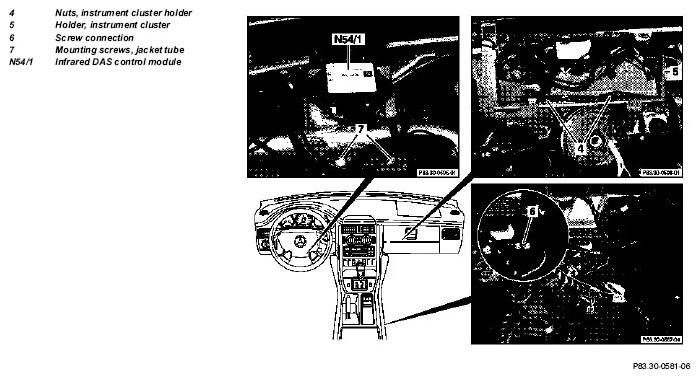

| 11 | Unscrew nuts (4) for instrument cluster holder (5) | ||
| 12 | Remove instrument cluster holder (5) | ||
| 13.1 | Remove infrared DAS control module(N54/1) | up to 31.5.97 except US version (code 491), except Japanese version (code 498). | AR80.30-P-4500G |
| 13.2 | Remove radio remote control module | as of 1.6.97 | AR80.35-P-4500G |
| 14 | Separate all cable straps on transverse pipe | ||
| 15 | Remove screw connection (6) for the electrical leads on body tunnel | ||

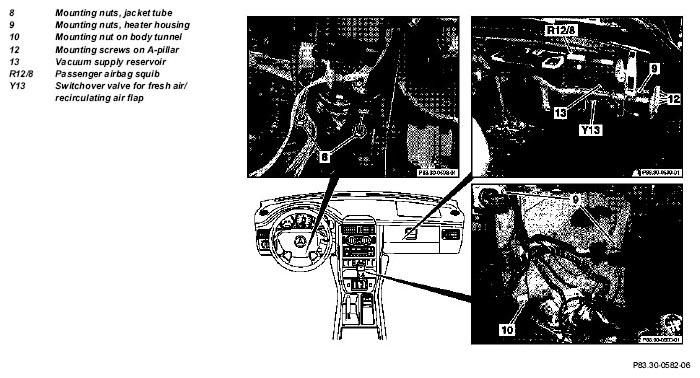

| 16 | Unscrew mounting screws (7) and mounting nuts (8) on jacket tube | ||
| 17 | Pull off electric connector from passenger airbag squib (R12/8) | ||
| 18 | Remove heater ducts on left and right | ||
| 19 | Unscrew mounting nuts (9) (3x) from AC housing | ||
| 20 | Unscrew mounting screw (10) from body tunnel | ||

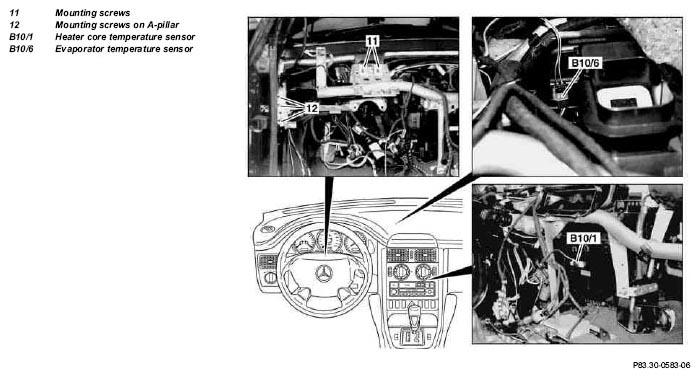

| 21 | Unscrew mounting screws (11) (2x) via jacket tube | ||
| 22 | Unscrew 3 mounting screws (12) on A-pillar | ||
| 23 | Disconnect connectors from vacuum supply reservoir (13) | ||
| 24 | Remove transverse pipe | ||
| 25 | Pull off electric connector at heater core temperature sensor (B10/1) | ||
| 26 | Pull off electric connector of the switchover valve for fresh air/recirculating airflap (Y13) | ||
| 27 | Pull off electric connector of the evaporator temperature sensor (B10/6) | ||
| 28 | Loosen all cable straps on heater housing | ||
| 29 | Remove AC housing | ||
| 30 | Install in opposite order |
