Removing and installing door lock on rear door - AR72.12-P-2510F

MODEL 210

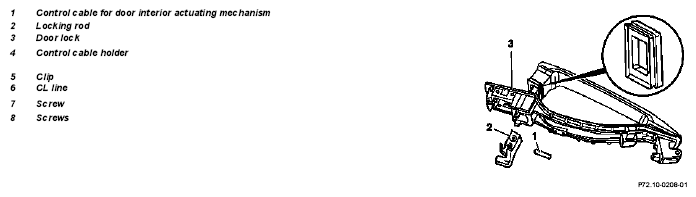

Fig 1: Identifying Door Lock On Rear Door Components - Model 210 (1 Of 2)

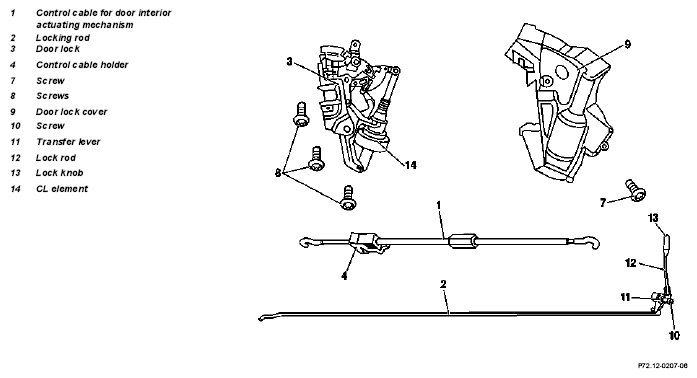

Fig 2: Identifying Door Lock On Rear Door Components - Model 210 (2 Of 2)

	Removal, installation
1	Remove door liner on rear door		AR72.12-P-1010F
2	Remove outer door handle on rear door		AR72.12-P-2410E
3	Remove mount
4	Pull foil off of inner door panel
5	Close crank window
6	Remove door interior actuating mechanism on rear door
7	Disconnect CL line (6) from door lock
8	Unscrew screw (7) for lock cover (9)	The lock cover can only be removed together with the door lock
9	Unscrew screws (8) on door lock	When installing tighten screws on end side first	*BA72.12-P-1005-01A
10	Remove door lock through assembly opening
11	Reinstall in opposite order

Rear door

Number	Designation		Model 210 except 210 with codes 979, Z04, Z06 86 of 112
BA72.12-P-1005-01A	Screws on door lock	Nm	8
