Removing and installing exterior door handle on rear door - AR72.12-P-2410E
MODEL 202, 210

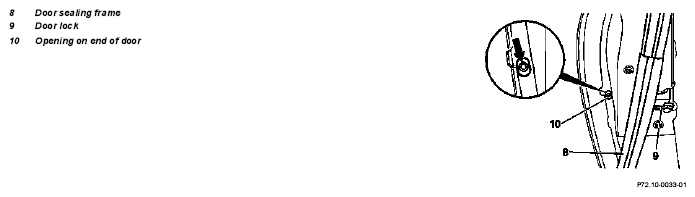

Fig 1: Identifying Exterior Door Handle On Rear Door Remove/Install Components - Model 202, 210 (1 Of 2)

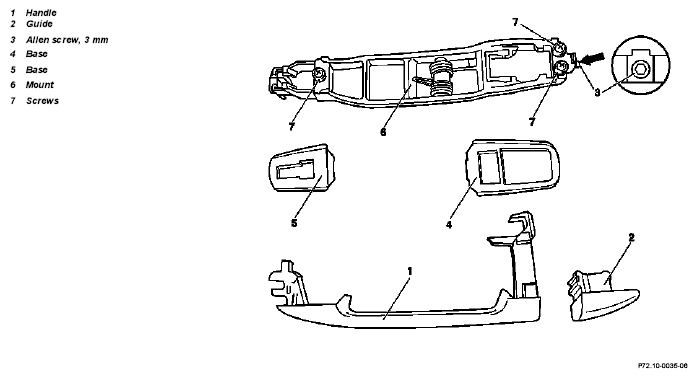

Fig 2: Identifying Exterior Door Handle On Rear Door Remove/Install Components - Model 202, 210 (2 Of 2)
| Removal | |||
| 1 | Pull door sealing frame out of channel in area of door lock | ||
| 2 | Loosen 3 mm Allen screw (3) 5 turns | ||
| 3 | Remove guide (2) | ||
| 4 | Pull handle (1) together with base (4) toward rear away from mount (6) and remove | Mount (6) can be removed through assembly opening in inner door panel. | |
| 5 | Remove base (5) | ||
| Installation | |||
| 6 | Install base (5) | Mount (6) installed. | |
| 7 | Install handle (1) with base (4) in mount (6) and simultaneously insert into actuating lever for door lock | ||
| 8 | Install guide (2) | ||
| 9 | Screw on 3 mm Allen screw (3) and tighten | *BA72.12-P-1004-01A | |
| 10 | Install door sealing frame | ||
| 11 | Check for proper function |
| Number | Designation | Model 202 | Model 210 except 210 with codes 979, Z04, Z06 | |
|---|---|---|---|---|
| BA72.12-P-1004-01A | 3 mm screw for rear door handle | Nm | 1.5 | 1.5 |
