Removal, installation |
|
|
| 1 |
Open engine hood |
Move engine hood to upright position |
AR88.40-P-1000E |
| 2 |
Place fender protectors on fenders |
|
|
| 3 |

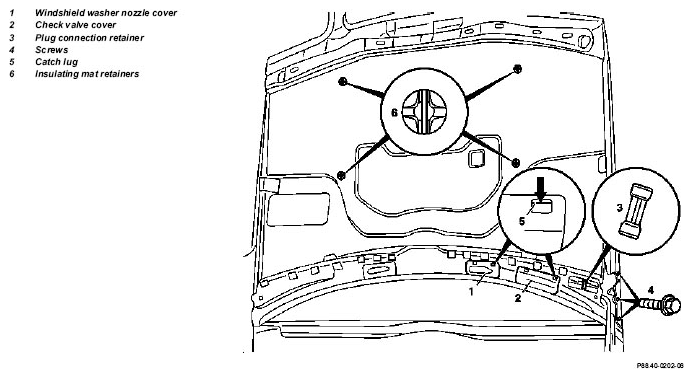

Remove cover (2) by pressing on catch lugs (5, arrow) |
Use screwdriver |
|
| 4 |
Unclip clip (3) and disconnect electric plug connection (8) |
|
|
| 5 |

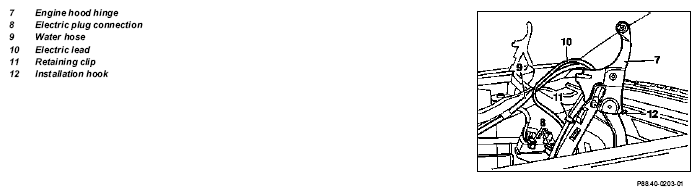

Pull electric lead (10) out of engine hood |
|
|
| 6 |
Pull water hose (9) off of check valve and pull out of engine hood |
|
|
| 7 |
Mark installation position of engine hood on engine hood hinges |
This facilitates installation |
|
| 8 |
Remove screws (4) on engine hood |
Secure engine hood with second person |
*BA88.40-P-1001-01A |
|
When the engine hood is replaced seal joints before painting, after installation preserve with hollow cavity wax |
|
|
| 9 |
Remove engine hood with second person and put down on suitable surface |
Avoid damaging paint
Installation:
When installing pay attention to correct fit, if necessary ↓ |
|
| |
|
Adjust engine hood |
AR88.40-P-3020E |
| 10 |
Reinstall in opposite order |
|
|
