Adjust engine hood - AR88.40-P-3020E

MODEL 202

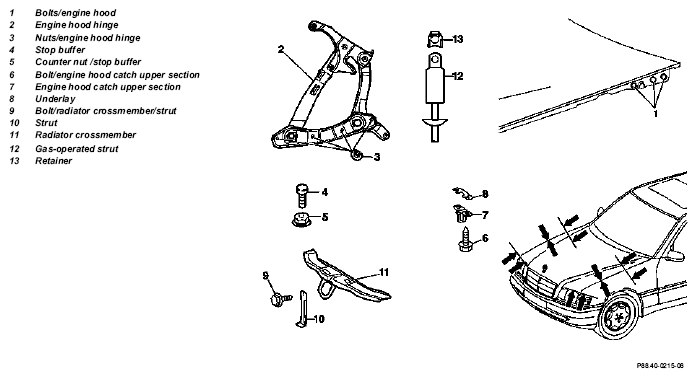

Fig 1: Identifying Engine Hood Components Adjustments - MODEL 202

	Adjustment in longitudinal and vertical directions
1	Open engine hood		AR88.40-P-1000E
2	Loosen bolts (1) on engine hood hinge and adjust engine hood	For slight longitudinal and height adjustment For larger range of adjustment, see steps 4 - 10
3	Tighten bolt (1).		*BA88.40-P-1001-01A
4	Move engine hood to upright position		AR88.40-P-1000E
5	Remove gas-operated strut (12)	For this purpose, lift retainer (13)
6	Close engine hood	Gas-operated strut removed	AR88.40-P-1000E
7	Remove fender liner in front fender		AR88.10-P-1300E
8	Loosen nut (3) from engine hood hinge (2)	Gas-operated strut removed
9	Adjust the engine hood so that the front edges of the front fenders are flush with the engine hood and the top edges are in alignment	If a larger range of adjustment is needed, loosen engine hood catch top section, adjust and tighten	*BA88.40-P-1004-01A
10	Tighten nuts (3) on engine hood hinge (2)		*BA88.40-P-1002-01A
11	Adjust the height of the stop buffer (4) so that the top edges of the front fenders and engine hood are flush	If required, shim engine hood catch top section; if necessary ↓ position radiator crossmember (10) higher/lower on strut (10)
12	Install gas-operated strut (12)
	Adjustment in transverse direction
13	Loosen bolts (6) on engine hood catch upper section (7)
14	Adjust gaps on left and right	Gap around hoods, doors, and lids ↓	Fig 2
		Model 202.01/02/12	AR60.00-P-0700-01E
		Model 202.07/08/18	AR60.00-P-0700-01EA
15	Align engine hood catch upper section (7) centered with engine hood catch in longitudinal and transverse direction and tighten		*BA88.40-P-1004-01A
16	Install fender liner in front fender		AR88.10-P-1300E
17	Check safety hook for proper function	For this purpose, close engine hood, unlock and check arrest on radiator crossmember.
18	Close engine hood, check for proper function		AR88.40-P-1000E

TEST AND ADJUSTMENT VALUES, GAP DIMENSIONS AT HOODS, DOORS AND COVERS

Number	Designation				Model 202.01/02/033/ 12/13	Model 202.07/08/093 /18/19
BE60.00-P-1001-01A	Gap dimension	Engine hood to fender	Dimension "A"	mm	5.0 (± 0.5)	5.0 (± 0.5)
		Engine hood to headlamp	Dimension "R"	mm	-	-
		Engine hood to radiator grille	Dimension "O"	mm	-	-
		Radiator grill to headlamp	Dimension "N"	mm	-	-
		Radiator grill to headlamp	Fig. see		AR60.00-P-0700-01E	AR60.00-P-0700-01EA

ENGINE HOOD

Number	Designation		Model 202
BA88.40-P-1001-01A	Bolt on engine hood	Nm	12
BA88.40-P-1002-01A	Nuts on hood hinge	Nm	10
BA88.40-P-1004-01A	Bolt, engine hood catch upper section	Nm	10

Special tools

Fig 2: Identifying Feeler Gage (129 589 03 21 00)
